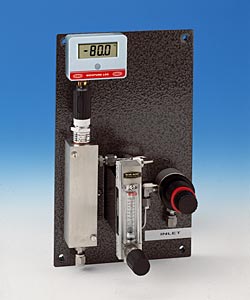

Sensor & meter inserted for illustration
purposes.
The SU4 will reduce the pressure from the dryer to
give a flow suitable for measurement. It combines a pressure reduction
control, sensor holder and a flow meter for up to 10 litres per minute.
(1-2 litre is usual for continuous use).
Moisture measurement under pressure will not give
the correct answer but room pressure used in the SU4 will read
correctly.
Description:
Sample Conditioning Unit, for wall mounting,
comprising pressure regulator, flow indicator, and sensor holder
mounted on a stove enamelled backplate.
Conditions flow of sample gas to the
required 2-10 litres per minute at near atmospheric pressure for
accurate and consistent sampling.
Pneumatic connections with a choice of
1/8", 1/4" or 6mm compression fittings if required for
inlet and outlet.
4 x 5mm mounting holes at 240 x 140mm (H x W
rectangle).
Dimensions /
Weight:
Overall
dimensions: 260mm x 160mm x 135mm depth. Weight:
1.6-1.8Kg approx.
Filter Unit. (for 20
and 200Bar variants only)
Firtree fittings for 6mm i.d. hose (low pressure only typically
<8 Bar)
To Order:
SU4-Lo (1/8",
1/4" or 6mm fittings) for 20 Bar variant
SU4-Me (1/8", 1/4" or 6mm fittings) for 200 Bar
variant
SU4-Hi (1/8", 1/4" or 6mm fittings) for 400 Bar
variant
(Please state required fittings with order)
