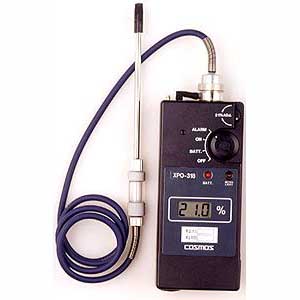

XPO-318 펌프식 산소농도 측정기

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

산소농도가 18% 이하시 경보부저가 울리고 밧데리가 부족 할 때 밧데리 램프가 꺼지면서 건전지 교환 을 알림.

●산소농도가 18% 이하시 경보부저가 울리고 밧데리가 부족 할 때 밧데리 램프가 꺼지면서 건전지 교환 을 알림.
●메타에 조명이 있어 어두운 곳에서도 측정가능.
●방폭구조(i2G3)
●독자 개발한 마이크로 에어펌프를 사용하여 조작이 간편.
●전지는 1일 3분간 10회 사용함을 기준으로 2개월 연속 사용.
●연소용 산소 농도측정기(XP0-318E)도 있습니다.



MODEL

XPO- 318 (경보기능부착 )

검지대상GAS

산소

검 지 원 리

격막 Galvani 전지식

채 취 방 식

자동 흡입식

지 시 표 시

액정 LCD 3자리 디지털 숫자

검 지 범 위

0∼25VOL%

지 시 정 도

각 지시농도의 ±0.3% (JIS-T8201규격은 ±0.7%)

경보 설정치

18VOL% 이하

경 보 방 식

산소농도 18% 이하시 위험 경보 BUZZER울림,전지종료 예고 (BATT Lamp가 소등)

사용온도범위

0∼40℃

전 원

단 3형 건전지 4개

연속사용시간

Alkali전지사용의 경우 약 24시간(단, Meter조명·경보가 없을 때)

방 폭 구 조

본질 안전방폭구조 i2G3

크기, 무게

W84×H190×D40(mm), 약 800g

부 속 회 로

Meter조명

부 속 품

Leather case, 건전지, GAS 도입관,Drain Filter, Filter Element, 흡입파이프용 고무

특별 부속품
(별 매)

Sampling Float, 냉각용 Drain Filter set,외부 출력 Connector, Gas흡입관.

Description
The Model COsmotector XPO-318 is a compact, lightweight automatic sampling instrument which may be used to measure the oxygen content of the atmosphere od any confined space over a range of 0-25%. Typical applications include checking manholes, sewers,tanks and other areas of potential oxygen in hydrocabons, and tail gas monitoring in oXidation reactions.
The sample of the atmosphere to be tested ts drawn through a sampling tube automatically and continuously by means of an internal, extremely low power drain micropump, passed over the transducer of a galvanic cell and exhaused to atmosphere. the oxygen content is indicated directry on a large, clear liquid crystal diode(LCD) digitalmeter.
A single multiposition switch turns the instrument on, checks battery voltage and selects operation with or without alarm. With the selector Switch set to "Alarm"position,an intermittent tone sounds an alarm when the oxygen concentration dorps below 18%

Product specification
Detection Principle Galvanic cell
Monitorring Range 0-25% O2
Accuracy +-0.7% of o2
Response Max. 20seconds to 90%(With 1m long sampling tube connected)
Alarm Presetting Level Factry present at 18% O2
(available, at other present point in request
Temperature Range 0 degree C to 45 degree C
Intrinsic Safety d2G3
Sensor life Min. 6months
