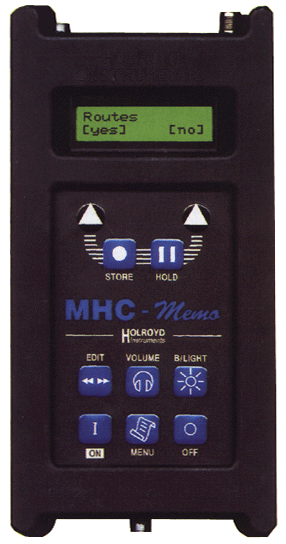

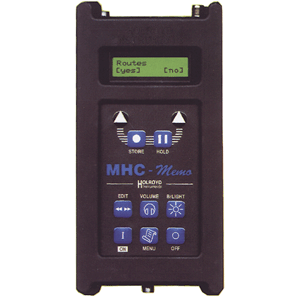

MHC MEMO-PRO 진동 분석기

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

route mode condition monitoring data collector including software
MHC-Memo Pro™
route mode condition monitoring data collector including software

  ● hierarchical point names
   (site,area,machine,point)

  ● multiple routes(upto 6 max)

  ● Upto 435 points per route
● 0.25 rpm very slow speed
   measurements

● manual data entry (pressure,    temp etc)
● data time & date tagged
● 2340 point auto logs


●
15 spectrum files

● real time clock

MHC-Memo Pro kit
includes Instrument
Software CD
Standard sensor
Heavy duty carry case
"Ear defender" headphones
25 monitoring pads
2 sets of rechargeable NiMH
230V UK battery charger
Cables
Instrument
Measurements



Route capacity
Points per route
Auto logs
Spectra
Data storage
Display
Keypad
Power save
Audio out
Comms
Op. Temp
Battery type
Battery life
(backlight off)

Size
Weight
Protection
Standard : Distess, dB Level.
Super Slo : Peak, Intensity,
Extent, dB Level.
Manual entry : -99999 to 999999
6 max
435
2340 data sets
15 max
Non volatile
2 × 16 backlit LCD alphanumeric
Sealed membrane
After 8 mins
Hi/Lo ranges
RS-232 supplied with data cable
0 - 50 deg C
2 × PP3 / MN1604 (9v or equivalent)
8hrs (NiCd/NiMH)
34hrs (alkaline)
80hrs (LiMn)
115(w) × 220(h) × 52(d)mm
800g (approx)
Rubber surround

Standard Sensor
(other variants available just ask)
Sensing element
Attachment
Size
Weight
Cable
Op temp
Piezoelectric resonant @ ~100kHz
Magnetic front face
60(I) × 32(O/D)mm
250g (inc cable)
1m TNC, 50 ohm coax
0 - 70 deg C

all specifications subject to change without notice
Distress® and Extent® are registered trademarks of
Holroud Instruments Ltd
The intermal battery for the real time clock normally lasts for 5+ years.
This should only be replaced by the manufacturer.


Typical uses


The MHC (Machine Health Checker) range of hand held instruments are designed to be affordable, simple to use, fast and effective condition monitoring tools.

The MHC Memo Pro is the logical upgrade to the MHC - Memo. It comes with brand new software for both analysis of spectra and trending of the measured points.

Why would I choose an MHC - Memo Pro?

·Stores data for up to 6 routes @ 435 points/route.

·Hierachical database (Site,Area,Machine & Point).

·Trending down to 0.25 RPM now available.

·Links to picture files within software.

·Distress* & dB level displays.

·Spectra can be stored.

·Can be left to auto log.

·Includes PC software which runs under windows 95,98,ME,NT,2000 and XP.

· Auto trends plots.

· Exception reports.

· Missed Point reports.

· User notes

· Route creation

· Spectra interpretation from AE Lab (also provided).

AE-LAB™
  frequency diagnosis software

   ● dedicated frequency
     analysis to 1kHz for AE
     envelope signals
   ● cleaner spectra
● integrated bearing defect
   calculator & worksheet

● harmonic cursor modes
● works with MHC-Memo pro
    to capture up to 15 spectra
    in the field
● user notes
