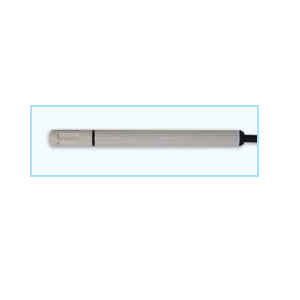

FHA6461 Capacitive humidity sensor Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Handy sensor for test measurements and stationary applications up to +60 °C

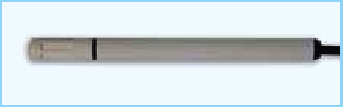

FHA6461 Capacitive humidity sensor Type

● Handy sensor for test measurements and stationary
applications up to +60 °C
● Sensor tube made of plastic
● Intelligent ALMEMO® extension cables, up to 100 meters long

Accessories :
ZB9600W Brackets for wall mounting, distance from wall approx. 40 mm
ZB9600KV Movable aluminum screw connection with Teflon sealing ring
ZB9600F Connecting flange for screw connection, hole circle 38 mm Ø
ZA9060VK2 Extension cable, 2 meters long
ZA9060VK4 Extension cable, 4 meters long
ZA9060VKC5 Intelligent extension cable, 5 meters long
ZA9060VKC10 Intelligent extension cable, 10 meters long
ZA9060VKC20 Intelligent extension cable, 20 meters long
ZA9060VKC30 Intelligent extension cable, 30 meters long
ZA9060VKC50 Intelligent extension cable, 50 meters long
ZA9060VKC100 Intelligent extension cable, 100 meters long
Technical data :
Operative range:
FHA646-1

-20 to +60 °C/ 5...98 % r.H.
Humidity measuring circuit
Measuring range : 0 to 100 % r.H.
Sensor : capacitive
Accuracy : ± 2 % r.H. at nominal temperature
Reproducibility : <1 % r.H. at nominal temperature</font>
Nominal temperature : +25 ± 3 °C
Sensor operating pressure : atmospheric pressure
Response time T90 : approx. 10 seconds
(without filter) at 5 m/s
Temperature measuring circuit
Sensor : NTC type N
Accuracy : -20 to 0°C: ±0,4°C
0 to 70°C: ±0,1°C
70 to 80°C: ±0,6°C
Reproducibility : 0,1°C
Mechanical design
Sensor tube :
   FHA646-1 :
diameter 12 mm
plastic, 155 mm long
Protective cap : SK7, metal-mesh filter
Cable : 1.5 meters long,
with ALMEMO® connector
Types :
FHA6461 Humidity sensor with plastic tube, -20 to +60 °C

FHA646-1x/-KxC/-2x/-7/-5x/-WG
Protective caps for capacitive humidity sensors Type
Dimensions : length approx. 33 mm, diameter 12 mm

Types :
  Type Designation Pore-
size
Maximum
temperature
Typical Application
SK7 ZB9600SK7 Metal-mesh filter in
PC-housing
100 μm 120°C Universal, for medium,
contamination, also high humidity
SK6 ZB9600SK6 PTFE-Sinterfilter 50 μm 180°C High chemical resistance
SK8 ZB9600SK8 Stainless steel
sinter filter
10 μm 180°C For severe mechanical stress,
heavy contamination,
strong air flow

Brackets for wall mounting
Movable screw connection
ZB9600W Brackets for wall mounting, distance from
wall approx. 40 mm
ZB9600KV Movable aluminum screw connection with Teflon sealing ring
ZB9600F Connecting flange for screw connection, hole circle 38 mm Ø
