FHA6466 Capacitive Humidity Sensor Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Compact sensor integrated into ALMEMO® connector. Suitable for control and long term measurements in climatology.
FHA6466 Capacitive Humidity Sensor Type

● Compact sensor integrated into ALMEMO® connector.
● Suitable for control and long term measurements in
climatology.

☞ When connecting the humidity sensor on certain devices, other input sockets are partly covered. If these input sockets are also required, connecting cable ZA9060AK1 or sensor type FHA6461 should be used.

Types:

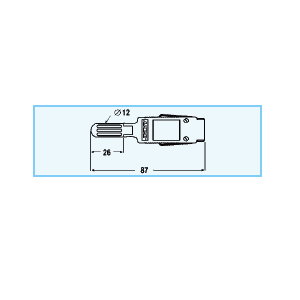

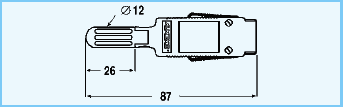

FHA6466 Length 87mm

Accessories:
ZA9060AK1  Connecting cable, 0.2 m
Technical Data:
Operative range : -20 to +60 °C / 5 to 98 % r.H.
Humidity Measuring Circuit
Measuring range: 0 to 100 % r.H.
Sensor: capacitive
Accuracy: ±2% r.H. at nominal temperature
Reproducibility: < 1% r.H. at nominal temperature</font>
Nominal temperature: 25°C ±3°C
Sensor operating pressure: atmospheric pressure
Response time T90: approx. 10s (without filter) at 5m/s
Temperature Measuring Circuit
Sensor: NTC type N
Accuracy: -20 … 0°C: ±0.4°C
0 … 70°C: ±0.1°C
70 … 80°C: ±0.6°C
Reproducibility: 0.1°C
