Sensitive sensor with diamond bearing and precise adjustment for high accuracies.

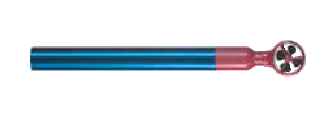

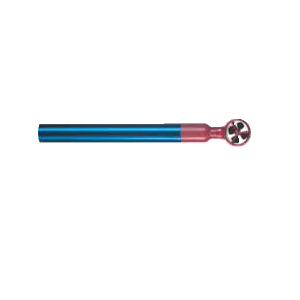

FV A915 S140 Rotating Vanes for Air and Gases Type
● Sensitive
sensor with diamond bearing and precise
adjustment for high accuracies. ● The
aluminium rotating vanes have stream-lined measuring heads made from plastic
material (polysulfone). ● The
shafts are, as standard, guided in protected, oiled
beryllium-brass bearing sleeves and supported in tips
made from special case-hardened steel. ● Particularly
suitable for use in climatology. ● Equipped
with snap-on measuring heads and, as a
result, very easy to service.
Technical Data:
Accuracy:
±0.5% of final val.
±1.5% of measured val.
Max. resolution:
0.01m/s
Nominal temperature:
22°C ±2K
Operative range:
-20 to +140°C
Meas. head diameter:
22mm, head is replaceable
Sensor length:
175mm
Inlet opening:
starting from 35mm
Cable length:
1.5m, ALMEMO® connector
Type:
FVA915S140
Meas. range: 0.4 to 40m/s
Accessories:
ZV9915S120
Spare snap-on head 20m/s
ZV9915S140
Spare snap-on head 40m/s
ZV9915VR3
Extension set Ø 15mm,
4 x 255mm
ZV9915TV
Telescope extension
Ø 15…24mm, 330/1010mm
