FV A645 TH2 Thermoanemometer Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

robe tube with heated miniature thermistor for flow measurement

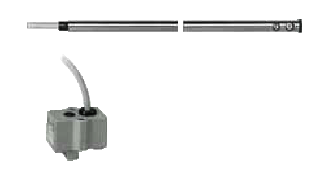

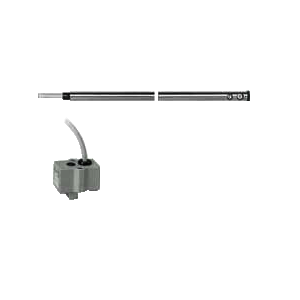

FV A645 TH2  Thermoanemometer Type


● Probe tube with heated miniature thermistor for flow
measurement and highly precise Ni10 temperature sensor for temperature compensation.
● Evaluation electronics are located in a separate module
housing.
● Measurement modules can be directly plugged onto the
measuring instruments.
● Particularly suitable for low wind velocities, e.g. for
draught measurements at work places.

☞ When attaching the measuring module other input
sockets will be blocked. If the blocked input sockets need
to be used or if the module can be directly installed at
the measuring location, an extension cable ZA 9060-VKx
(maximum length 5m) must be used.

Accessories:
ZA9060VK2 Extension cable 2m long
ZA9060VK4 Extension cable 4m long
Technical Data:
Air speed:
   Accuracy:
   0.1 … 0.5m/s:
   0.5 … 3.5m/s:
   3.5 … 15.0m/s:
± 0.05m/s
± 0.01m/s ± 3% of final val.
± 0.10m/s ± 3% of final val.
Temperature:
   Meas. range:
   Resolution:
-20.0 … 80.0°C
0.1K
Operative range: 0 … 40°C
Compensation: 10 … 36°C
Nominal temperature: 22 °C ± 2K
Air humidity: 0 … 90% r.H.
(non-condensing)
Operating voltage: 6 … 13V
through ALMEMO® device
Current consumption: 50mA (mains adapter for
ALMEMO® device is
recommended)
Dimensions: 300mm long, 9mm Ø
Inlet opening: 9mm
Cable length: 1.5m with
ALMEMO® meas. module
Module size: 37 x 36 x 22mm

Type:
FVA645TH2 For flow velocities
from 0.1 … 2.000m/s,
max. resolution: 0.001m/s
