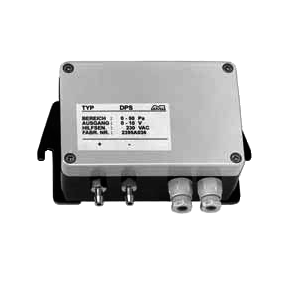

FD8612DPS Pressure Sensors

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Suitable for use in the laboratory, as well as for use in harsh industrial environments, etc..

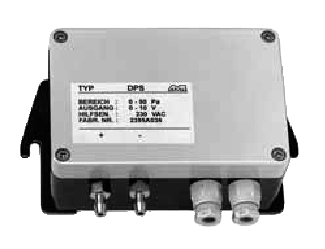

FD8612DPS
Pressure Sensors for Wall Mounting Type

● Suitable for use in the laboratory, as well as for use in harsh industrial environments, e.g. HEVAC applications, clean room technology, medical technology, filter technology and finishing pass technology.
● The robust mechanics guarantees long term stability, linearity and good reproducibility.
● Temperature drift reduced to a minimum by specific compensation of the sensors.
● Operation is almost maintenance-free, as a result
of the freefrom-wear inductive measuring system.
● As standard, the integrated electronics provide a pressure proportional voltage signal from 0 to 2V as output.

Options:
OD8612L2 Linearity 0.2%
with DPS only in ranges ≥ 2.5 mbar
with APS only in range ≤ 100 mbar
OD8612L5 Linearity 0.5%
with DPS only in ranges ≥ 1 mbar
with APS only in range ≤ 200 mbar
OD8612N Power supply : 230 V
OD8612R2 Output 0 to 10 V
(voltage supply 19 to 31 V DC)
OD8612R3 Output 0 / 4 to 20 mA
(voltage supply 19 to 31 V DC)

Accessories:
ZA8612AK2 Connecting cable 2m long
mounted with connector for connection to ALMEMO® devices
ZB2295S 1 set silicone hoses
2m long black/colourless
ZB2295SSL Silicone hose black per m
ZB2295SFL Silicone hose colourless per m


Technical Data:
Linearity: ±1% of final value,
option: ±0.2% or ±0.5%
Hysteresis: ±0.1% of final value
Nominal temperature: 23°C
Overload capacity: up to 400 mb: 5-fold,
from 500 mb: 2-fold
Max. common mode pressure: 1 bar
(at differential measurement)
Power supply: 6VDC,
option: 230V 50/60Hz
Power consumption: approx. 3.5mA
Output: 0 to 2V, option:
0 to 10V/0(4) to 20mA
Connection: electrical:
screw terminals,
screwed cable gland PG 7,
pressure:
6.5mm hose connection
Rise time: T90 approx. 0.02s
Temperature drift:
Zero point
range
0.03% of final value / K,
0.03% of final value / K
Operative range: +10 to +50°C ,
air humidity 10 to 90%
non-condensing
Storage temperature: -10 to +70°C
Housing: material ABS
120 x 80 x 55mm (L x H x D)
Safety class: 0
Protection system: IP 54
Weight: approx. 300g
Sensor capacity: approx. 3ml
Volume increase: approx. 0.2ml at nom. press.

Types:
Measuring ranges relative and differential pressure:
FD8612DPS 0 to 2.5 mbar / 10 mbar / 100 mbar / 1000 mbar
Pressure transducer type DPS,
Please specify measuring range
OD8612P10 Measuring range 1 mbar (100 Pa),
additional charge
OD8612P05 Measuring range 0.5 mbar (50 Pa),
additional charge
