Wire strain gauges in 4-conductor full-bridge circuit. Control resistance for final adjustment of the measuring range.
K1368

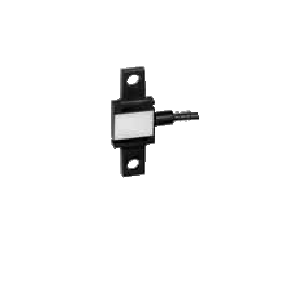

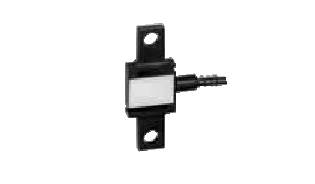

Tension Sensor Type
● Wire strain gauges
in 4-conductor full-bridge circuit.
● Control resistance
for final adjustment of the measuring range.
● All measuring ranges
that are specified in Newton can also be supplied in kg ranges.
Technical Data:
Max. load limit:
150% of final value
Maximum dynamic load:
70% of final value
Reference temperature:
23°C
Cable:
3m long, with ALMEMO®
connector
Accuracy for tension:
<±0.2% of final value</font>
Nominal measuring path:
<0.15mm</font>
Operative range:
+5 to +45°C
Drift error at permanent load:
<0.1% per 30min</font>
Permissible lateral forces:
not allowed
Protection system:
IP60
Material:
aluminium
Type:
FKA368
Measuring range 10N, 20N, 50N please
specify
▒ All
ALMEMO® devices provide easy push-button
adjustment of no-load and final value.
