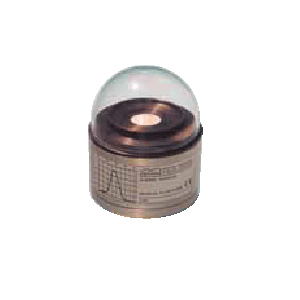

Measuring head in anodized aluminum housing, with UVtransparent plastic dome
FLA613VLM
Radiation measuring head Type
● Measuring head in
anodized aluminum housing, with UVtransparent plastic dome
● Rain-proof,
splash-protected system, with desiccant to prevent condensation forming
on the inside of the dome.
● Especially
suitable for measuring operations outdoors, e.g. in medical, biological,
and climate research, in weather information forecast systems, in agriculture,
and for the purposes of general information for the public
● The spectral
sensitivity of the receiver corresponds
approximately to that of the human eye.
Technical Data:
Measuring range :
0 to 170 klux (approx. 250 W/m2)
Spectral sensitivity :
360 to 760 nm
Max. spectral sensitivity :
550 nm
Signal output
0 to 2 V
Power supply :
+5 to +15 V
Mounting :
2 screws, M4, in base plate
Cable passage :
downwards
Housing :
anodized aluminum
Diffusor :
PTFE
Dome :
PMMA
Cos correction :
error f2 <3%</font>
Linearity :
<1%</font>
Absolute error :
< 10 %</font>
Residual voltage (E = 0) :
<10 mV</font>
Nominal temperature :
22 ± 2 °C
Operating temperature :
-20 to +60 °C
Dimensions :
Housing : 55 mm high
Dome : 40 mm high
Diameter : 80 mm
Weight :
approx. 300 g
Types:
FLA613VLM
Weather-resistant measuring head for
measuring the radiation intensity including cable, 1.5 m, and ALMEMO®
connector
