High quality measuring head, DIN class B for light flux measurement with Ulbricht globe photometer.

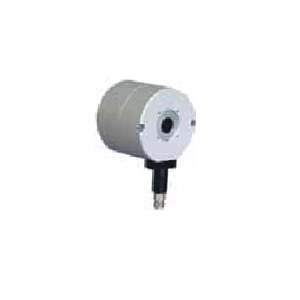

FLA603LSM4 Light Flux Probe Head


● High quality measuring head, DIN class B for light flux
measurement with Ulbricht globe photometer.
● Perfect coating of the globe with BaSO4 for diffuse reflectivity and spectrally neutral reflection quality.
● Suitable for cold light sources, and lamps with high colour temperature and almost monochromatic radiation (as in LEDs).
● Examples for applications:
Endoscopes, fiber optic bunches, light emitting diodes.


Technical Data:
Measuring range: 0.001 lm to 250 lm
Smallest resolution: 0.001 lm
Sensitivity: 20nA/lm
Acceptance angle: up to 90 °
Accuracy: DIN quality class B
Nominal temperature: 24°C ±2K
Humidity range: 10 to 90 % non-condensing
Operating temperature: max. 100°C inside globe
Inner diameter of globe: 50mm
Test opening: 12.7mm

Type:
FLA603LSM4 Light flux probe head with ALMEMO® connecting cable 2m long and factory calibration certificate
