Integrated current supply via 9V battery in handle including on/off switch and automatic 10min cutoff.

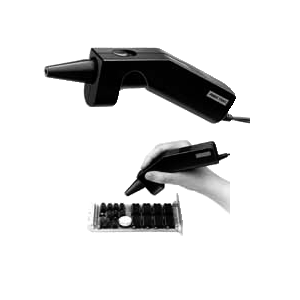

AMiR 7841
Infrared Temperature Measuring Finger Type

Technical Features:
● Low cost infrared sensor for connection to handheld instruments.
● Integrated current supply via 9V battery in handle including on/off switch and automatic 10min cutoff.
● Suitable for control measurements of surface temperatures in many fields of industry and craft.
● Due to the compact design and easy operation it is ideally suitable for electricity and electronics to identify hot spots on PCBs, contacts etc.

Technical Data:
Measuring range: -18 to 260°C
Resolution: 1K
Accuracy: ±2% of meas. value or ±2K
Reproducibility: 1% of meas. value or ±1K
Nominal temperature: 23°C ±5°C
Response time: 1s
Spectral sensitivity: 8 to 14mm
Emissivity: 0.95 fixed setting
Power supply: 9 V alkaline-manganese battery (IEC 6 LR 61) operating life time 50hrs (with 10min cutoff)
Ambient temperature: 0 to 65°C permissible
Relative humidity: 10 to 70%, non-condensing at 30°C
Dimensions/weight: L 180 x W 30 x H 50mm, 180g

Types:
MR784110 With linearised voltage output 1mV/°C, lab connector for multimeter connection
MR784120 With thermocouple characteristic curve NiCr-Ni (K), miniature flat connector
FIA260MV With ALMEMO® flat connector for direct connection to ALMEMO® handheld devices

Measuring Field Diagram:
