Øtesto 171은 온도 (NTC) 및/또는 상대 습도에 대한 센서를 내장하는 고성능의 로거 시리즈
Ø큰 메모리를 가지고 정확하며 또한 알루미늄 피막 처리된 케이스 사용
기술데이터
Testo 171 Series
Testo 171-2
Testo 171-3
Testo 171-6
제품 그림
온도 측정 범위
-20 ~ 70 ℃ (-4 ~ 158>°F )
-25 ~ 50 ℃ (-14 ~ 122 °F)
-50 ~ 120 ℃ (-58 ~ 248 °F)
센서
NTC
NTC
NTC
습도 범위
0 ~ 100%
0 ~ 100%
0 ~ 100%
측정 속도
2초 ~ 24 시간 (자유로이 선택)
2초 ~ 24 시간 (자유로이 선택)
2초 ~ 24 시간 (자유로이 선택)
메모리 용량
55,000개의 측정값
55,000개의 측정값
55,000개의 측정값
보호 클래스
IP65
IP65
IP65
케이싱
알루미늄 피막처리
알루미늄 피막처리
알루미늄 피막처리
치수
5.16 x 2.68 x 1.02"
5.16 x 2.68 x 1.02"
5.16 x 2.68 x 1.02"
소프트웨어
Windows 3.0 이상 필요
Windows 3.0 이상 필요
Windows 3.0 이상 필요
보증
2년
2년
2년
재고: 1대
Electronic thermohygrograph
testostor 171-2
testostor 171-2, humidity logger for %RH, °C, td, incl. starting magnet, battery and calibration protocol
Part no. 0577 1712 2,693,000 원
testostor 1722
With alarm output testostor 1722, humidity data logger for %RH, °C, td, incl. alarm output, starting magnet, battery and calibration protocol
Part no. 0577 1722 3,408,000 원

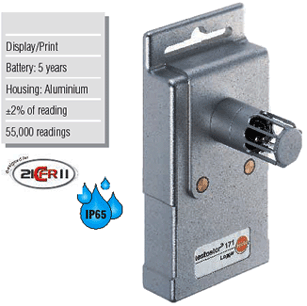

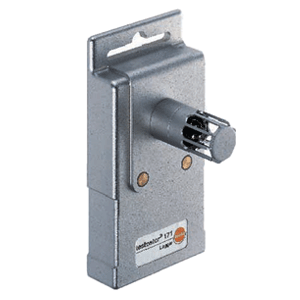

testostor 171-2 is a compact, accurate data logger with an internal probe, parallel dew point measurement and large memory capacity.
testostor 1722, similar to testostor 171-2 but with alarm output. The signal device which can be connected sends out a signal when the specified limits are exceeded.
※● On-site application: Testo software for Palm OS® replaces laptop/PC ● Control and adjustment possible using adjustment set ● Sintered cap protection for dusty areas ● DKD calibration
Monitors constant ambient conditions in clean rooms during the manufacture of pharmaceutical products, electronic components... (testostor 1722 + signal device)
Analysis via infrared printer: the infrared printer offers you the option of printing the data saved in the testostor logger directly on location.
Ordering data for Accessories
Part no.
Display can be attached to data logger For quick checks on location
0554 0176 581,000원
Display with print option, can be attached to data logger For quick checks on location
0554 0175 755,000 원
Testo printer with 1 roll of thermal paper and 4 AA size batteries Prints readings on location
0554 0545 456,000 원
Recharger for printer (with 4 standard rech. batt.)
0554 0110 132,000 원
Spare thermal paper for printer (6 rolls)
0554 0569 38,000 원
Spare thermal paper for printer (6 rolls) Measurement data documentation legible for up to 10 years
0554 0568 43,000 원
Optical alarm display for data logger, battery-operated Warns if limits have been exceeded
0628 0025 571,000 원
Signal device for testostor 1722 ( with connection cable) for reliable signals when the programmed limit values are exceeded
0554 1722 813,000 원
Holder with lock for data logger Theft-proof
0554 1782 92,000 원
※testostor 171 data logger, connection for Palm OS® In connection with ComSoft 3, Part no.: 0554 0830
0554 0805 485,000 원
ComSoft 3 - Professional with data management Incl. database, analysis and graphics function, data analysis, trend curve
0554 0830 617,000 원
※ComSoft 3 - For requirements in accordance with CFR 21 Part 11 Incl. database, analysis and graphics function, data analysis, trend curve
0554 0821 2,805,000 원
Interface, attachable to data logger
0554 1781 112,000 원
Spare battery for testostor 171
0515 0018 87,000 원
Control and humidity adjustment set 11.3%RH/75.3%RH incl. adapter for humidity probes
0554 0660 487,000 원
Stainless steel sintered cap, Ø 21 mm, can be screwed onto humidity probe Protection in case of high mechanical load and high velocities
0554 0640 77,000 원
Transport case (plastic) for data loggers (max. 5 off) and accessories
0516 0117 316,000 원
DKD calibration certificate/Humidity Humidity data logger; cal. points 11.3%RH and 75.3%RH at +25°C; per channel/instrument
0520 0246 689,000 원
ISO calibration certificate/Humidity Humidity data logger; calibration points 11.3%RH and 75.3%RH at +25°C; per channel/instrument
0520 0076 268,000 원
ISO calibration certificate/Temperature Temperature data logger; calibration points -8°C; 0°C; +40°C per channel/instrument
0520 0171 230,000 원
Recommended kit:
testostor 1722, standard set with alarm function
testostor 1722 humidity logger
Signal device for testostor 1722
ComSoft 3
Interface
Holder with lock
Transport case (plastic)
Technical data
Probe type
Testo humid. sensor, cap.
NTC
Calc. parameter
Meas. range
0... +100 %RH
-20... +70 °
-20... +70 °C td
Accuracy ± 1 digit
±2 %RH (+2... +98 %RH)
±0.4 °C (-10... +50 °C) ±0.5 °C (-20... -10.1 °C) ±0.5 °C (+50.1... +70 °C)
Resolution
0.1 %RH (0... +100 %RH)
0.1 °C (-20... +70 °C)
Memory
55000
Measuring rate: 2s to 24h selectable
Material /Housing
Aluminium, anodized
Battery life: up to 5 years
Protection class
IP65
Software: Menu-driven from Microsoft Windows
Oper. temp.
-20... +70 °C
95 / NT 4 Service pack 4
Storage temp.
-40... +85 °C
Battery type
Lithium battery (2032)
Dimensions
131x68x84 mm
Weight
320 g
Warranty
2 years
