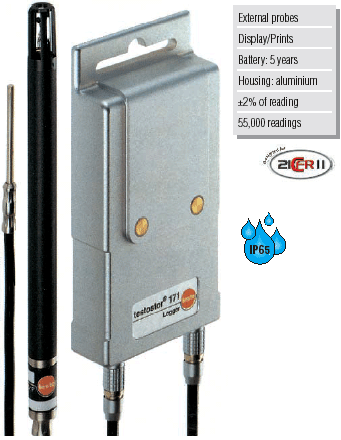

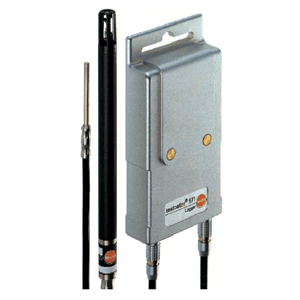

testostor 171-6 Part no. 0577 1716

제조사 : Testo
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

제품개요

Ø testo 171은 온도 (NTC) 및/또는 상대 습도에 대한 센서를 내장하는 고성능의 로거 시리즈

Ø 큰 메모리를 가지고 정확하며 또한 알루미늄 피막 처리된 케이스 사용



기술데이터

Testo 171 Series

Testo 171-2

Testo 171-3

Testo 171-6

제품 그림
온도 측정 범위 -20 ~ 70 ℃ (-4 ~ 158>°F ) -25 ~ 50 ℃ (-14 ~ 122 °F) -50 ~ 120 ℃ (-58 ~ 248 °F)
센서 NTC NTC NTC
습도 범위 0 ~ 100% 0 ~ 100% 0 ~ 100%
측정 속도 2초 ~ 24 시간 (자유로이 선택) 2초 ~ 24 시간 (자유로이 선택) 2초 ~ 24 시간 (자유로이 선택)
메모리 용량 55,000개의 측정값 55,000개의 측정값 55,000개의 측정값
보호 클래스 IP65 IP65 IP65
케이싱 알루미늄 피막처리 알루미늄 피막처리 알루미늄 피막처리
치수 5.16 x 2.68 x 1.02" 5.16 x 2.68 x 1.02" 5.16 x 2.68 x 1.02"
소프트웨어 Windows 3.0 이상 필요 Windows 3.0 이상 필요 Windows 3.0 이상 필요
보증 2년 2년 2년

Electronic thermohygrograph with external probes

Monitoring air humidity/temperature fluctuations in climatic cabinet


Graphic proof of humidity/temperature fluctuations
The testostor 171-6 data logger has 2 probe inputs. Example: 2 separate multi-function %RH/°C probes for simultaneous checks on room and ambient humidity.

The Testo humidity sensor is PTB approved and guarantees a constant high measuring accuracy over a wide temperature range.
Analysis of the humidity data can be expressed in %RH, dew point, g/m³ water level.


● Wide range of probes
※● On-site application:
Testo software for Palm OS®
replaces laptop/PC
● Probes can be positioned quickly and easily
● Data analysis using Testo printer or PC

testostor 171-6

testostor 171-6, humidity data logger for %RH, °C, td, incl. starting magnet, battery and
calibration protocol

Part no.   0577 1716  2,310,000 원

Suitable probes at a glance
Part no.
0636 9717
1,007,000 원
0628 0008
1,923,000 원

Part no.
0628 0007
344,000 원
0610 1720
270,000 원
0610 1722
250,000 원

Ordering data for Accessories Part no.
Display can be attached to data logger 0554 0176
553,000 원
Display with print option, can be attached to data logger 0554 0175
722,000 원
Testo printer with 1 roll of thermal paper and 4 AA size batteries
Prints readings on location
0554 0545
456,000 원
※testostor 171 data logger, connection for Palm OS®
In connection with ComSoft 3, Part no.: 0554 0830
0554 0805
485,000 원
ComSoft 3 - Professional with data management Incl. database, analysis and graphics function, data analysis, trend curve 0554 0830
617,000 원
※ComSoft 3 - For requirements in accordance with CFR 21 Part 11
Incl. database, analysis and graphics function, data analysis, trend curve
0554 0821
2,805,000 원
Interface, attachable to data logger 0554 1781
112,000 원
Holder with lock for data logger 0554 1782
92,000 원
ISO calibration certificate/Humidity
Electronic hygrometers; calibration points 11.3%RH and 75.3%RH at +25°C
0520 0006
242,000 원
DKD calibration certificate/Humidity
Electronic hygrometers; calibration points 11.3%RH and 75.3%RH at +25°C
0520 0206
650,000 원
See opposite page for more Ordering data
Technical data
Probe type Testo humid. sensor,cap. NTC Calc. parameter
Meas. range 0... +100 %RH -50... +120 °C -30... +50 °C td
Accuracy
± 1 digit
±2 %RH (+2... +98%RH) ±0.4 °C
(-10... +50 °C)
±0.6 °C
(-50... -10.1 °C)
±0.6 °C (+50.1... +120 °C)

Resolution 0.1 %RH (0... +100%RH) 0.1 °C
(-50... +120 °C)


Memory 55000
Oper. temp. -20... +70 °C
Storage temp. -40... +85 °C
Battery type Lithium battery (2032) Meas. rate: 2s to 24h freely selectable
Dimensions 131x68x26 mm Software: menu-driven from Microsoft Windows
Weight 305 g 95 / NT 4 Service pack 4
Warranty 2 years Battery life: 5 years
