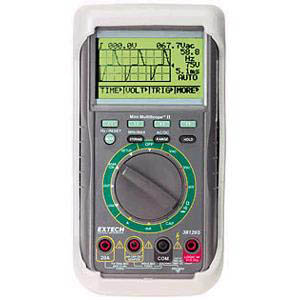

EH381265 Mini DMM/Oscilloscope

제조사 : Davis
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Features
  • Oscilloscope - 100kHz bandwidth scope displays voltage or current waveform in graphical format
  • PC Interface – RS232 interface and software for viewing, collecting and analyzing measured data
  • Scope Features - Glitch capture and wide sweep rates
  • DMM Features - MIN/MAX/AVG recording, 4000 count LCD display, Relative and Data Hold
  • Memory - Store and recall up to 15 waveforms
  • Functions - AC/DC Voltage and Current, Resistance, Capacitance, Frequency, dB, Duty Cycle, Period, Square Wave Generator, Logic test, Continuity and Diode
  • Includes – Windows 95/98 software and cable, test leads, alligator clips, built-in stand, fuses, protective holster and 6 AA batteries
SPECIFICATIONS


Ranges

Max. Res. Basic Accuracy
(%rdg + digits)
DC Voltage 400mV, 4, 40, 400, 1,000V 0.1mV ±(0.75% + 10d)
AC Voltage (TRMS)

400mV, 4, 40, 400, 700V

0.1mV

±(1.0% + 10d) up to 400V
±(1.5% + 10d) up to 700V
DC Current 400mA, 20A 0.1mA ±(1.2% + 10d)
AC Current (TRMS) 400mA, 20A 0.1mA ±(1.5% + 10d)
Resistance (Ω) 400, 4k, 40k, 400k, 4M, 40MΩ 0.1Ω ±(1.0% + 5d) up to 4MΩ
Capacitance 4, 40, 400nF, 4μF, 40μF, 400μF, 4mF 1pF ±(3.0% + 5d)
Frequency 10Hz to 100kHz 0.1Hz ±(1.0% + 5d)
Signal Output 10Hz to 20kHz 1 Hz ±(1.2% + 5d)
Period/Pulse Width 4 msec, 1 second 1μSec ±(3.0% + 5d)
Duty Cycle 1 to 100% 0.1% ±(3.0% + 5d)
Power 6 AA batteries (6 hours); Optional AC adaptor and rechargeable batteries
Sample Rate Measurements: 4/second; Bargraph: 7/second
Dimensions/ Weight 3.6 x 7.4 x 2.2" (91 x 188 x 56 mm)/ 1.0 lbs (450g)
Catalog No. Description Price
EH381265 Mini DMM/Oscilloscope 356,830
EH381264 NiCad Batteries & 117VAC Charger 64,998
EH899 Vinyl pouch case with shoulder strap 25,033
EH381277 Temperature Adapter 51,711
EH445603 Humidity Adapter 218,874
