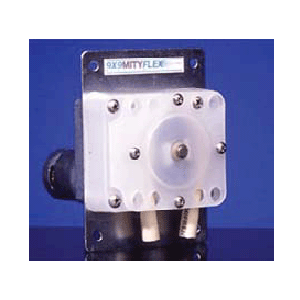

J432-003 OEM COMPACT PERISTALTIC PUMP

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The CON-TROL-CURE® OEM Compact Peristaltic Pump is offered to add to your full production line.
OEM COMPACT PERISTALTIC PUMP


The CON-TROL-CURE® OEM Compact Peristaltic Pump is offered to add to your full production line. It is compact and flexible to fit into many built-in specifications. Self-priming up to 29 ft, can be run dry continuously and is non-siphoning.

SPECIFICATIONS:
● Complete Components: Drive and pump head
● Tubing Size: 1/4" I.D. (6.3 mm)
● Operating Pressure: Minimum of 0-20 PSI (continuous)
Maximum of 25-35 PSI (intermittent)
● Special Design: Lightweight, reversible, in-line capability
● Enclosure: Equipped with 18 gauge zinc-plated steel mounting plate
● Flow Rate Range: 3 mL/min - 987 mL/min
● Max Operating Temperature: 175°F
● Electrical: 12/24V DC
● Viscosity: Can handle up to 10,000 cPs, particulates and low shear
● Weight: 8 lbs
● Dimensions: 5.12"W x 3.74"H x 4.55"D
● Options: Dual pump heads

IMPORTANT NOTE: Compact peristaltic pumps should only be used with non-flammable materials.

Part Number Description Units
J432-003 OEM PERISTALTIC PUMP EACH
