J004-037 POLYPROPYLENE ELLIPTIC HAND VALVES

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

1/2" NPT threaded connections, Full flow, 90° rotation from off to full flow

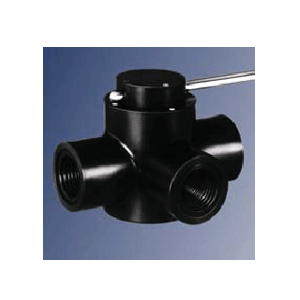

POLYPROPYLENE ELLIPTIC HAND VALVES

The unique design of the Elliptic Hand Valves offers unmatched suitability for a broad range of applications in fluid handling systems, especially where a high degree of resistance to corrosion and contamination is required.

FEATURES:
● 1/2" NPT threaded connections
● Full flow
● 90° rotation from off to full flow

● Dynamic sealing effect
● In-line servicing and cleaning
● Pressure rating: 80 PSI @ 73°F water
● Compact and lightweight
● Individually tested

The versatile 4 position/3-Way Elliptic Valve may be used as:
1. 1 inlet to either of 2 outlet
2. 1 inlet to both (2) outlets
3. Either of 2 inlets to 1 outlet
4. Both (2) inlets to 1 outlet

Part Number Description Units
J004-037 VALVE 2-WAY EACH
J004-038 VALVE 3-WAY, 2 POSITION EACH
J004-039 VALVE 3-WAY, 4 POSITION EACH
