N010-001 UV/EB INTENSITY LABELS

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

This photochromic intensity indicator is a reliable, low cost, simple, in-house method of monitoring UV radiation, EB

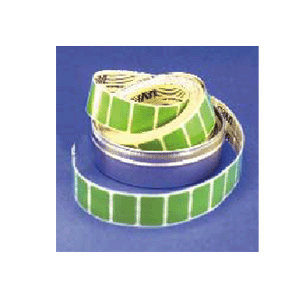

UV/EB INTENSITY LABELS

This photochromic intensity indicator is a reliable, low cost, simple, in-house method of monitoring UV radiation, EB or Gamma Ray dosage. When exposed to UV, EB, or Gamma Ray, the green labels undergo a gradual color change from green to purple that is directly related to the energy value received.

The adhesive backed label is placed on a sample product or substrate and processed to proper cure rate. The color deviation can easily be measured with a densitometer or by comparing the colors to test labels created to known operating standards to determine lamp failure or processing inconsistency.

If used on a regular basis, they can detect equipment problems at an early enough stage to prevent lengthy shutdowns. Daily tests can easily indicate a step by step calibration for an accurate reference within each batch. The use of a Digital Tachometer can help insure repeatable results.

Suggested Use: CON-TROL-CURE® UV/EB Intensity Labels are especially useful in systems where other instruments are not practical, such as 3-D curing, web coating, container printing, medical sterilization, etc.

Part Number Description Units
N010-001 UV/EB INTENSITY LABELS SET
