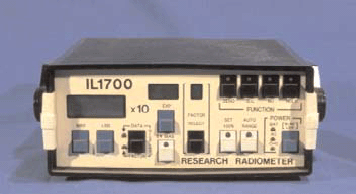

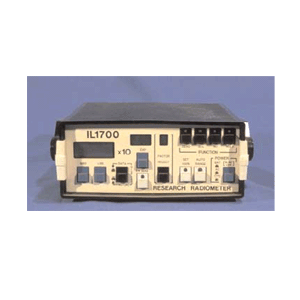

The IL-1700 Research radiometer is the most versatile current measurement instrument in the world.
CON-TROL-CURE® IL-1400/1700 RADIOMETERS


The IL-1700 Research radiometer is the most versatile current measurement instrument in the world. Designed specifically to measure photo detector current, the IL-1700 maintains unmatched linearity over a 10 billion to 1 dynamic range.
This benchtop device is a powerful analytical tool.
The portable IL-1400 combines the latest technical innovations in low level current amplification technology with microprocessor controlled simplicity. The onboard computer interrogates each "smart" detector for units, calibration and range information, automatically displaying a calibrated reading in the correct optical units. In addition to being user-friendly, the IL-1400 provides performance specifications unmatched by any other handheld radiometer on the market.

For general applications we have made ordering easy. Pre-packaged systems are now available including: Radiometer, probe, and applicable filters. No more guessing what system is right for you, we have done the work for you.

UV CURING
We offer the full line of International Light UV curing radiometers designed specifically for this application. All radiometers
are calibrated to NIST standards in W/cm2 and J/cm2. For general purpose measurement requirements, the IL-1745 and IL- 1445 are a perfect pre-packaged solution. However, in many graphic applications it is not possible to pass a monitor through the curing system. The RAMP probe has been designed to take spot irradiance measurements in confined environments. The IL-1747 and IL-1447 curing radiometers include the RAMP probe and appropriate detectors.
PHOTORESIST
Photoresist is an organic polymer which becomes soluble when exposed to ultraviolet light. It contains a light-sensitive substance whose properties allow image transfer onto a PCB board. Unique to these radiometer systems is the ability to autorange during exposure integrations. Proprietary floating current-to-current amplification technology permits autoranging without any gain changes, for real-time integration without data loss. Consult your photoresist manufacturer to determine whether the IL-1740 and IL- 1440 in "A" (wide) response or "B" (narrow) response is appropriate for your application.
GERMICIDAL
UV irradiation is an effective method of killing a broad range of microbes. In essence, the UV radiation breaks the molecular bonds in the organism’s DNA. These Germicidal Radiometers use solar blind vacuum photodiodes and filters with band passes in accordance with the IES Luckiesh and DIN standards. For general Germicidal applications we recommend the IL-1771 or IL-1441.
CUSTOM
Both the IL-1400 and the IL-1700 systems can be further customized for the above applications and additionally configured for use in: Photometry, Radiometry, Phototherapy, Photobiology, Photostability, UV Hazard, Solar, Laser, and LED. Individual sensors, probes, and filters are available for adding to or upgrading your existing device.

Part Number System Application Specifications
M007-017A IL-1445 Curing 182nW/cm² to 0.6W/cm². Spectral Range: 250-400nm
M007-017B IL-1447 Curing/RAMP .4mW/cm² to 10W/cm² (heat limit). Spectral Range: 250-400nm
M007-017C IL-1440A PhotoresistA 250nW/cm² to .8W/cm². Spectral Range: 320-475nm
M007-017D IL-1440B PhotoresistB 52nW/cm² to 184mW/cm². Spectral Range: 326-401nm
M007-017E IL-1471 Germicidal 33μW/cm² to 333mW/cm². Spectral Range: 185-310nm
M007-017F IL-1400 Custom
M007-001A IL-1745 Curing 2.3 x 10-9 to 2.3W/cm². Spectral Range: 250-400nm
M007-001B IL-1747 Curing/RAMP 8 x 10-6 to 10W/cm² (heat limit). Spectral Range: 250-400nm
M007-001C IL-1740A PhotoresistA 4 x 10-9 to 4W/cm². Spectral Range: 320-475nm
M007-001D IL-1740B PhotoresistB 5 x 10-7 to 5W/cm². Spectral Range: 326-401nm
M007-001E IL-1771 Germicidal 1 x 10-9 to 5x10-4W/cm². Spectral Range: 185-310nm
M007-001F IL-1700 Custom
