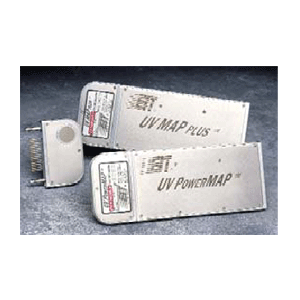

UV POWER MAPTM &
UV MAP PLUSTM RADIOMETERS
The UV PowerMAPTM and the UV MAP PlusTM are both advanced measurement systems
that measure and store UV energy, UV irradiance, and temperature information
derived from their optics and thermocouple probes in UV curing processes.
The UV PowerMAPTM
simultaneously measures all 4 UV spectral regions (UV-A, UV-B, UV-C, and
UV-V) while the UV MAP PlusTM only measures 1.
The information is transferred to a PC where
it is presented in graph and data format for viewing and analysis. The information
is characteristic of the same energy and irradiance that would be impinged
on an actual work piece passing through the curing process. Variables such
as reflector materials, reflector shapes, wavelength-specific reflector
degradation and uniformity, and lamp focus can be documented.
FEATURES:
● UV PowerMAPTM measures peak power density and total
energy density in 4 spectral regions: UV-A, UV-B, UV-C, and UV-V
● UV MAP PlusTM measures the peak power density and
total energy density for any 1 spectral region
● Collection and storage of up to 1 million data points
● Collected data displayed in graphical and tabular
forms in the PowerViewTM software package
● PowerViewTM enables an ultra-fast, user-adjustable
sampling rate - up to 2048 samples/second - that ensures high resolution
even at high speeds
● Detachable Optics Head - allows the use of different
optics heads with the Data Collection Unit to minimize downtime during recalibration
● Type J thermocouple records temperatures from 0-500°C
● Low, narrow profile to allow access to most curing
applications
● Rugged aluminum chassis and stainless steel case
The UV PowerMAPTM and UV MAP PlusTM systems are composed of a data collection
unit, detachable optic measurement head, and PowerView software package.
The units measure UV energy in J/cm2 and UV irradiance in W/cm2.
Part Number
Description
Units
M007-087
UV POWER MAPTM
EACH
M007-088A
UV MAP PLUSTM UV-A
EACH
M007-088B
UV MAP PLUSTM UV-B
EACH
M007-088C
UV MAP PLUSTM UV-C
EACH
M007-088V
UV MAP PLUSTM UV-V
EACH
