UV POWER PUCKTM &
UVICURETM PLUS RADIOMETERS

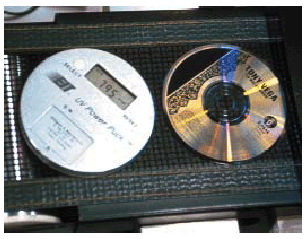

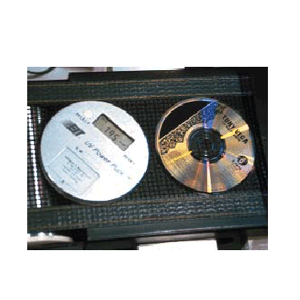

The UV Power PuckTM and UVICURETM Plus are self-contained, electro-optic
instruments designed to measure and display peak UV intensity and total
UV energy used in the UV curing process. These units' unique compact design,
(4.60"D x 0.5"H), allows them to be placed directly in most curing
environments.
The UV Power PuckTM's carefully designed optical
sensing system measures total UV dosage on 4 different channels simultaneously.
These four different channels represent four different UV bandwidths of
interest for most curing applications: UV-A (320-390nm), UV-B (280-320nm),
UV-C (250-260nm) and UVV (395-445nm). The output of the sensing system is
converted to digital form and displayed on the LCD by scrolling through
a user-friendly menu. Total UV dosage, measured in Joules/cm2, is how much
actual UV energy was impinged on the unit from the time it encountered UV
until the time the UV source was removed. The UV Power PuckTM also has the
distinct advantage of being able to monitor the peak intensity in Watts/cm2
in each bandwidth. This allows the operator to determine not only the total
energy, but also how that energy is delivered, i.e., what intensity at what
wavelength. The UV Power PuckTM can accommodate energy intensities up to
10W/cm2. Total energy range is 0- 250 J/cm2 for each UV range.
The UVICURETM Plus offers all of the standard features of the UV PowerPuck™
but in a lower cost, single spectral range version. Available in UV-A (320-390nm),
UV-B (280-320nm), UV-C (250-260nm) or UV-V (395-445nm); the UVICURE® Plus
can accommodate energy intensities up to 5W/cm2. Total energy range is also
0-250 Joules/cm2.
Part Number
Description
Units
M007-040
RADIOM POWER PUCK™
EACH
M007-040A
UVICURETM PLUS UV-A
EACH
M007-040B
UVICURETM PLUS UV-B
EACH
M007-040C
UVICURETM PLUS UV-C
EACH
M007-040V
UVICURETM PLUS UV-V
EACH
