M006-035 ACE 3000 THICKNESS GAUGE

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

This factory installed, custom-fitted probe system is calibrated and shipped ready-to-use.

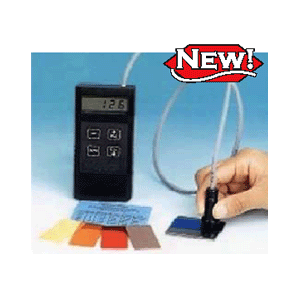

ACE 3000 THICKNESS GAUGE

This factory installed, custom-fitted probe system is calibrated and shipped ready-to-use. Simply press “ON” and measure. It has a full range accuracy of better than +/-3%. +/-1 micrometer accuracy with 0-200 micron thick material. This unit features last reading hold for easy viewing of results on its LCD, automatic shut-off, memory, limits, audio warning, battery, calibration plate and foils in a heavy-duty case. Performs smooth and rough surface, simple zero and single point calibration. Audible alarm indicates when measurement is complete.

SPECIFICATIONS
● Measurement Range: 0-1500 microns (0.0-60 mils)
● Resolution @ 0-100 micrometers: 0.1 micrometer
● Resolution @ 100-1500 micrometers: 1.0 micrometer
● Compact size: 120 mmH x 60 mmW x 26 mmD

Part Number Description Units
M006-035 ACE 3000 THICKNESS GAUGE EACH
