5,000mW/cm2 of initial ouput delivers a peak intensity of 365nm

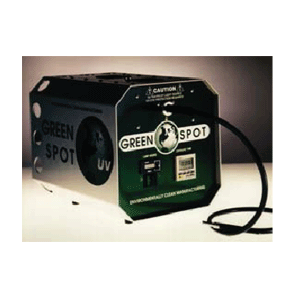

UV SPOTCURE SYSTEM 5000
MW
5,000mW/cm2 of initial ouput delivers a peak intensity of 365nm and the
maximum energy for spot curing UV adhesives, inks or coatings. 5 mm x 1
m liquid filled light guide incorporates a dichroic reflector to reduce
IR build-up. Vertical bulb orientation produces maximum output and extended
bulb life. No tools are required to open lamp reflector assembly for reduced
downtime. Digital shutter timer with foot switch permits hands-free operation.
While lamp intensity of this system starts
in excess of 5000mW/cm2, over the life of the lamp this intensity degrades
to 40% of initial output after about 1000 lamp hours. This is a standard
characteristic of all arc lamps. Since most UV chemistries need less than
1000mW/cm2 of UV to initiate proper photoinitiator reaction, the 2000mW/cm2
of power towards the end of the lamp life is more than twice that needed
to provide proper UV cure. Standard 5 mm x 1 m toxic-free liquid light guide
included. Solid-state power supply includes bulb life hour meter, and temperature
controlled dual cooling fan system. Compact, anodized enclosure has a footprint
of only 9.75" x 12.5". Total weight: 12 lbs.
Part Number
Description
Units
A121-014
UV SPOTCURE 5000MW
EACH
