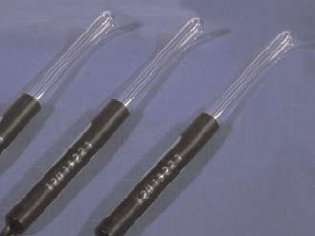

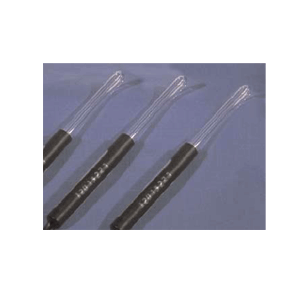

Low pressure UV Penlamps are cold cathode, mercury, gaseous discharge lamps constructed of double bore quartz.
PENLAMPS

Low pressure UV Penlamps are cold cathode, mercury, gaseous discharge lamps constructed of double bore quartz. Specially designed with electrodes at one end for
insertion into small apertures. UV Penlamps are known for their long life (5000 hours), stability throughout the lamp life and high degree of isolated spectral line accuracy. They can be used as primary references or spectral sources. The range of applications include monochromatic sources for optical systems and reference studies. Other applications include chromotography, interferometry and atomic absorption techniques.

Part Number Description
A129-001 UV PENLAMP 254nm/ 2-1/8"
Lighted Length: 2-1/8" (5.38 cm)
Total Length: 4-5/8" (11.75 cm)

Tube O.D.: 1/4" (.64 cm)
Plastic Handle O.D.: 3/8" (.95 cm)
A129-004 UV PENLAMP 254nm/ 1"
Lighted Length: 1" (2.54 cm)
Total Length: 2-3/8" (6.03 cm)

Tube O.D.: 5/32" (.40 cm)
Plastic Handle O.D.: 1/4" (.64 cm)
A129-003 UV PENLAMP 254nm/ 3/4"
Lighted Length: 3/4" (1.91 cm)
Total Length: 3-1/4" (8.26 cm)

Tube O.D.: 1/4" (.64 cm)
Plastic Handle O.D.: 3/8" (.95 cm)
A129-002 UV PENLAMP 365nm/ 2-1/4"
Lighted Length: 2-1/4" (5.72 cm)
Total Length: 4-3/4" (12.07 cm)

Tube O.D.: 3/8" (.95 cm)
Plastic Handle O.D.: 3/8" (.95 cm)
A129-005 UV PENLAMP 365nm/ 1-1/8"
Lighted Length: 1-1/8" (2.86 cm)
Total Length: 2-5/8" (6.03 cm)

Tube O.D.: 1/4" (.64 cm)
Plastic Handle O.D.: 1/4" (.64 cm)
