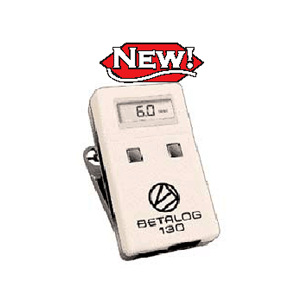

The Betalog 130 is a combination reflection/transmission densitometer.
BETALOG 130

The Betalog 130 is a combination reflection/transmission densitometer. A unique handheld instrument intended for the imagesetting environment. The Betalog 130 is the only one-piece instrument capable of reading both films and reflection copy. Read any size films on a light table, not limited by instrument throat depth.

Read dot area in positive or negative form and density in transmission mode to 6.00D. Stochastic and conventional halftones can be read with equal ease and accuracy. Reflection mode uses Murray-Davies
equation compensation for greatest accuracy with different proof and repro materials. Yule-Nielson "n" factor is available in reflection mode to improve the agreement between measurements and visual comparison.

The Betalog Model 130 is equipped with a serial data port for connection to an optional printer or directly to a computer for data collection and analysis. Optional Postscript calibration software allows linearization to be accomplished directly from the densitometer. Optional cables are available for connection to Mac or PC computers.

Part Number Description Units
M003-012 BETALOG 130 EACH
