E144-017 SCREEN FRAME CLAMP UNIT

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

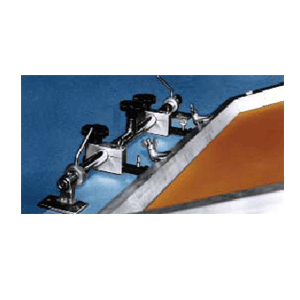

Precision micrometer adjustments are included with the machined steel, fully adjustable Screen Frame Clamp.
SCREEN FRAME CLAMP UNIT


Precision micrometer adjustments are included with the machined steel, fully adjustable Screen Frame Clamp. Each unit comes complete with etched micrometer adjustment marks
for easy reference.

The Screen Frame Clamp provides tight registration tolerances for high quality reproduction. Its "XYZ" control system locks in place for easy and excellent repeatability.

Easily mounted to any standard vacuum table or base, these clamps can be used with metal or wood frames, 5/8" to 2" thick. 4 standard maximum screen frames are available. Frames not included.

Part Number Description Maximum Screen Size Units
E144-017 SCREEN FRAME CLAMP 26 20" x 26" EACH
E144-018 SCREEN FRAME CLAMP 30 26" x 30" EACH
E144-019 SCREEN FRAME CLAMP 50 38" x 50" EACH
E144-020 SCREEN FRAME CLAMP 58 52" x 58" EACH
