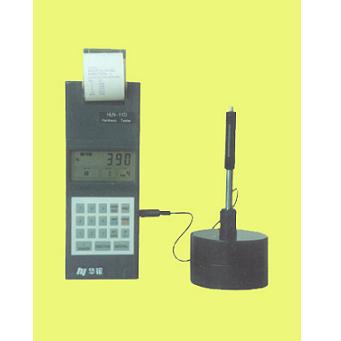

HLN-11D 휴대형 Ecotip 경도계

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

쎈서 교환이 가능한 Ecotip 타입 경도계 , 기본형은 D type 쎈서 가 창착이 되어 있슴. 프린터 일체형 휴대용 경도계임







HLN-11 SERIES

MULTIFUNCTIONAL HARDNESS TESTER

  This tester is suitable for the quick hardness test of metal materials. They feature high accuracy, reliable performance, easy operation and convenient taking. The measured Leeb hardness can be converted into the hardness of Brinell, Rockwell, Vickers and Shore according to different directions and can be converted and recorded automatically.

Specifications of display unit

   Power supply: 6.0V DC

   Working temperature: 1-40 °C

   Dimensions: 268 x 86 x 47mm

   Weight: approx. 0.67kg

Main accessories

   Small positioner: 1 pc.

   Binder: 1 bottle

   Leeb standardized block: 1 pc.

   Charger: 1 pc.




Specifications of impact body

Type D DC D+15 G
Specifications
Measuring range 330-890HL 330-890HL 346-890HL 300-650HLG
Impact capacity 11Nmm 11Nmm 11Nmm 90Nmm
Dimensions Φ20x150mm Φ20x85mm Φ20x165mm Φ20x250mm
Testing direction Arbitrary
Weight 75g 50g 80g 250g
Mass of impact body 5.5g 5.5g 5.5g 20g

Diameter of tungsten carbide ball

3mm 3mm 3mm 5mm
Application range


Basic type, suitable for most of hardness tests.


Suitable for hard- ness  measuring of inner holes and small space.


Suitable for deter- mining hardness of tooth face and slots, etc.


Suitable for hardness measuring of steel, cast steel, gray cast iron,  nodular cast iron and non-ferrous metals.
