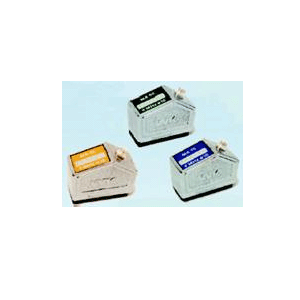

MA45-2 Miniature Shear Wave - Single Element

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

These MA transducers are high quality, hard wearing designed for reliability and consistent performance.
These MA transducers are high quality, hard wearing designed for reliability and consistent performance. For use on large volume routine metal fabrications or welded assemblies where it is essential that the transducer can be relied upon. Compatible with virtually all flaw detectors.

Lemo 00 or Microdot connectors
2MHz or 4 MHz

Specification:

● Housing: Die-cast
● Crystal Diameter: 3/8"
● Crystal: Lead Zirconate Titanate
● Frequency accuracy: ±10%
● Angles: 45°, 60° & 70°
● Angle accuracy: ±2°
● Overall size: 1.3" Long x 0.7" wide x 1" high
● Beam emission point marked on each transducer
● Long life - Hard wearing
● Easy change contact face

Want to try the transducer but not quite sure if it will meet your requirements - simply order one, try it out and if for any reason you do not like simply return it and get full refund. We welcome your comments.

Miniature Shear Wave - Single Element
Part# Product Description Unit Unit Price
MA45-2 45 Degree 2MHz 3/8" Dia Single - Microdot Each 240,000 원
MA45-2L 45 Degree 2MHz 3/8" Dia Single - Lemo 00 Each 240,000 원
MA45-4 45 Degree 3/8" Dia Single - Microdot Each 240,000 원
MA45-4L 45 Degree 4MHz 3/8" Dia Single - Lemo 00 Each 240,000 원
MA60-2 60 Degree 2MHz 3/8" Dia Single - Microdot Each 240,000 원
MA60-2L 60 Degree 2MHz 3/8" Dia Single - Lemo 00 Each 240,000 원
MA60-4 60 Degree 4MHz 3/8" Dia Single - Microdot Each 240,000 원
MA60-4L 60 Degree 4MHz 3/8" Dia Single - Lemo 00 Each 240,000 원
MA70-2 70 Degree 2MHz 3/8" Dia Single - Microdot Each 240,000 원
MA70-2L 70 Degree 2MHz 3/8" Dia Single - Lemo 00 Each 240,000 원
MA70-2 70 Degree 4MHz 3/8" Dia Single - Microdot Each 240,000 원
MA70-2L 70 Degree 4MHz 3/8" Dia Single - Lemo 00 Each 240,000 원

One of each angle
There are no products to list in this category.

Miniature Shear Wave - Single Element
NEW PeizoComposite
Part# Product Description Unit Unit Price
MAPP38-2 38 Degree 2MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 원
MAPP38-2L 38 Degree 2MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 원
MAPP38-4 38 Degree 4MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 원
MAPP38-4L 38 Degree 4MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 원
MAPP45-2 45 Degree 2MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 원
MAPP45-2L 45 Degree 2MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 원
MAPP45-4 45 Degree 4MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 원
MAPP45-4L 45 Degree 4MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 원
MAPP60-2 60 Degree 2MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 원
MAPP60-2L 60 Degree 2MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 원
MAPP60-4 60 Degree 4MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 원
MAPP60-4L 60 Degree 4MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 원
MAPP70-2 70 Degree 2MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 원
MAPP70-2L 70 Degree 2MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 원
MAPP70-4 70 Degree 4MHz 3/8" Dia Single - Peizo - Microdot Each 486,000 원
MAPP70-4L 70 Degree 4MHz 3/8" Dia Single - Peizo - Lemo 00 Each 486,000 원

One of each angle
There are no products to list in this category.
