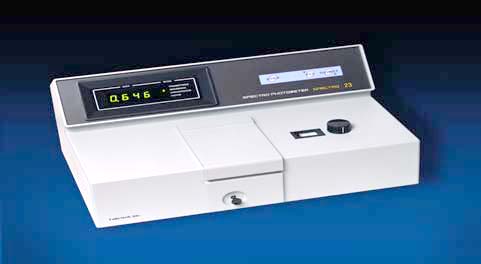

Spectro 23 spectrophotometer is one of the traditional analytical Instruments used in Conventional Laboratories, which can work in the Visible, Near-Ultraviolet, and Near Infrared Spectral Range, for quantitative and qualitative analysis. Spectro 23  utilizes  new generation technology; using a microprocessor for automatic adjusting of 100% T and Zero absorption, Factor and Concentration. Most knobs have  been eliminated and replaced by Soft Key, as a result; Spectro 23  is really easy to work with.

The Spectro 23 spectrophotometer can be used at chemistry analyzing, biochemistry labs and clinical laboratories.  It can also be utilized for environmental protection, quality control, agricultural research and industries.

The 4 multiple cell holder is one of the unique features of the Spectro 23.  It is able to test, record four sample results immediately.  Furthermore, Spectro 23 may save the reagents and samples by using the optional semi-micro cuvette of 1.5 ml or less to help reduce waste.

Features

Top of the Page

  • A very durable instrument.

  • Test tube holder and large cell optional.

  • Wide, continuous wavelength ranges for test flexibility.

  • Automatic absorption, transmission, factor and concentration by microprocessor

  • High photometric and wavelength accuracy for the best results by having a 6 nm bandwidth.

  • Low stray radiant energy and noise for unequivocal readings, even at high absorbencies.

  • Excellent stability characteristics for reliable test results

  • Carefully designed.  Easy operation and maintenance.

  • High absolute reading accuracy, outstanding stability and reproducibility with distinct digital display.

  • F.D.A. Licensed.

  • Very competitive price.

  • Can be applied for constant temperature & kinetic test by optional parts.

  • At Labomed, we believe greatly  in the accuracy of our spectrophotometers. We are so sure of the quality that we include 2 testing filters free of charge for testing calibration.

Accessories

Top of the Page

  • 4 square cells 10mm.

  • 1 instruction book.

  • 1 dust cover.

  • 2 filters with holder for accuracy test.

  • 1 multiple cell holder for 4 cells.

  • 1 cable.

  • Optional: Cell holder for test tube 10-15-20-25 mm and light pass rectangular cell 20-30-40-50 mm.

  • Optional: Kinetic test system and flow trough system.

  • Optional: Large cuvette and round cuvette.

Technical Specifications

Top of the Page

Optical system: Single beam spectrophotometer .

Wavelength range:330 – 1000nm .

Light source: Tungsten-Halogen lamp.

Detector: Silicon photodiode

Wavelength accuracy:+2nm

Wavelength reproducibility:0.5nm

Spectral band pass:6nm

Stray light: <0.5%T, at 360nm

Transmittance range: 0-100% (T)

Absorption range:0-1.999 (A)

Concentration range: 0-2000

Photometric accuracy:+0.5% (T) +0.004A

Transmittance reproducibility: 0-100 % T 0.5% (T)

Monochromator: Grating mirror 1200 lines/mm

Multi cell holder: 4 cuvettes

Power supply: 230V 50Hz/110V 60Hz

Dimensions:22¡±(W)x14¡±(D) x 11 ¨ö¡± (H) inches

Net weight:35 lbs
