A wireless data logging system for remotely monitoring up to 200 data loggers
PC 1대에서 중앙 관리

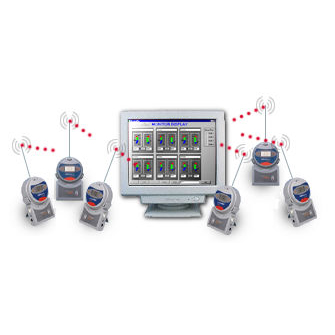

MicroLog Plus 는 무선 통신으로 최대 200대의 MicroLog 와 동시에 통신이 가능하며 실시간 온도, 습도를 PC에 직접 전달한다. 외부 쎈서의 정보를 같은 방법으로 수집이 가능하다. MicroLog plus 시스템은 MicroLog data logger 장치, 로거를 장착하는 크레들 (cradle), PC에 설치되는 무선 수신기, 사용이 간편한 소프트웨어로 구성되어 중안 집중식으로 관리가 가능하다. 여러개의 로거와 1대의 PC간에 무선통신이 가능하여 수동으로 각 유니트를 다운로드 할 필요가 없어서 MicroLog Plus 는 슈퍼마켓, 식품 운송, 저장창고, 공기조화 및 배출, 크린룸, 창고, 갤러리 등에서 필요한 데이터의 저장용으로 이상적인 로거 이다.
동작 방법
MicroLog Plus 에서 MicroLog data logger 가 온도, 습도의 기록을 위하여 무선 트랜스미터가 장착된 크레들 은 300 meter 의 거리를 무선으로 송신 할 수 있다. 각 개의 크레들은 ID번호가 달려 있고 여러가지 시간 간격으로 프로그램 되어 데이터를 송신 가능 하다. 이 진화된 특징으로 2개 이상의 크레들의 데이터 충돌은 발생하지 않는다.
산업용 자동 데이터 수집
MicroLog Plus 수신기는 모든 송신을 수신하여 Microlab 소프트웨어 에 이송한다. 소프트웨어는 1개의 인터페이스로 200개 까지의 데이터로거 자료를 수신하며 , 기타 산업용 데이터로거 에서 필수적인 기능을 모두 사용자 사용이 간편한 기능으로 디자인 되어 각 로거에서 데이터를 수집, MicroLog 경보 레벨, 샘플측정 간격 및 각종 파라메타 설정 등의 가능하다.
제품 Highlights
로거로 부터 데이터를 300 meter 거리에 있는 PC에 송신 가능
면허 불필요의 무선 통신
200개의 로거 동시 연결 가능
사용 간편, 각 로거의 상태를 color-cod 된 사용자 인터페이스 보고서
프로그램 가능한 상한 하한 설정으로 경보 출력 가능
가격 저렴, 여러개의 로거용의 편리하고 진보된 솔루션
System 구성
MicroLog Logger 는 내장된 온도, 습도쎈서 와 어떠한 외장 쎈서와도 호환이 가능한, analog 입력 포트가 있다.
MicroLog Cradle 은 로거를 설치하고 로거가 읽은 데이터를 무선으로 dnjsrur PC에 보내는 RF 송신기를 내장고 있다. 이 부분은 별매임..
MicroLog 수신기는 소형의 RF 수신기로서 로거로 부터 무선으로 보내온 자료를 컴퓨터에 전달한다..
The MicroLog Plus Software 는 중앙 집중식 제어 및 관리를 최대 200개의 로거를 원격 컴퓨터에서 할 수 있다.
온습도 Logger EC-650 with Wireless Transmitter & Alarm Cradle, AC adapter
650,000
DT-152A
PC 용 무선 수신기 with AC adapter
450,000
PC-Kit
Software and RS-232C cable
수신기 가격에 포함
MicroLogPLUS The MicroLogPLUS Solution
200대의 무선 로거를 원격 감시할 수 있는 시스템으로 크레들과 송신기술로 PC 에 실시간 측정 데이터를 송신한다,
면허가 불 필요한 무선 통신 기술
최대 200대의 MicroLog 연결하여 최대 200 MicroLogs 를 300m (120m US Version) 거리 까지 측정
설정치 변경이 가능한 음성 및 시각 경보 장치
상하한 경보를 2개의 open collector 출력으로 타 장비의 제어가 가능 하다.
Screw terminal 보드 타입으로 사용자가 쉽게 크레들에 전원을 공급할 수 있으며 외부 센서 연결이나 open collector 출력을 보낼 수 있다
USB 와 Serial 통신 포트로 PC 와 연결하여 한번에 크레들 셋업이 가능
MicroLogPLUS 구성:
The MicroLog Cradle a mount for the logger is also a wireless (RF) transmitter that transmits readings at user-set intervals to a remote PC monitoring station for observation and data storage. It also provides an alarm functionality which can activate an internal audio alarm as well as control and open collector digital outputs. These allow the user to connect to any external devices when alarm thresholds are crossed.
나사식 단자 판 This allows the user to connect the DC power, external sensors, contact sensors, position sensors, or alarm open/relay collectors directly to the circuit board.
External Magnet Antennae (외장 자석식 안테나) This improves the strength of the RF signal, enabling transmission through obstacles such as refrigerator walls.
Receiver (수신기) MicroLog PLUS Management Control Software lets you control and monitor up to 200 MicroLog Logger devices from a remotely located computer, by transmitting data recordings to the receiver. Each cradle is tagged with an ID number. Cradles transmit data in different time slots according to their ID. The cradle memory can be automatically or manually downloaded every day.
Repeater For use where there is no line of sight, due to obstacles such as stairs or walls, or where the distance between the logger and receiver is greater than 300m (120m US Version). The repeater collects the data from the MicroLogPLUS using the built-in internal receiver and, using the internal transmitter sends the data on the final leg to the PC receiver.
Visual and audio alarms when data exceeds thresholds
Email and cell-phone notification
Battery level displayed
Automatic data savings and exports to Excel
MicroLog set-up including:
Sensor definition
Sensor calibration
ID number for cradles
Alarm levels and properties of loggers
Comments for each logger
Sampling rates: every 10 seconds to 2 hours
New data analysis features for both MicroLab and MicroLabPLUS software.
These features respond specifically to requests from the field that enable a broader and more complex range of application environments. Not only do both versions now support the MicroLogPRO, new 10bit datalogger but provide analysis functionality including statistics – maximum, minimum and average enabling a quick glance summary of the environment and historical analysis. This is usually used by pharmaceutical companies who need a constant bird's eye picture of the conditions their materials are kept in.
Mean kinetic temperature, an expression of cumulative thermal stress in different temperatures during storage, transportation and distribution.
Pasteurization provides analysis for the most common methods of pasteurization in Industry: High Temperature Short Time (HTST); Ultra Pasteurization (UP) and Ultra High Temperature (UHT) pasteurization.
Histogram provides a graphical view of historical results presented according to defined parameters of periods of time and percentage levels. This provides a level of analysis which can be tailored to specific environment needs for an immediate picture. For example this can be used in a museum environment where the percentage of time the humidity reached certain levels can be viewed.
A screen shot of the actual working environment indicates pictorially where the sensors are placed and allows for immediate alert identification and resolution. Data can be clearly identified according to the ID number of the logger it came from and the threshold relevant to the that logger.
MicroLabPLUS lost communication alarm: Added alarm features for lost communication, indicates when the signal has been lost, when communication has been regained and when the battery is low.
Cradle activation and deactivation transmission means that the user can select which cradles from his entire environment he wishes to view and record at any given moment. Cradle activation and deactivation transmission means that the user can select which cradles from his entire environment he wishes to view and record at any given moment.
Selection of historic files according to sampling and average rates. On opening any given file the software automatically provides the option to select a specific data transmission time period and sampling rate.
New data analysis features for both MicroLab and MicroLabPLUS software.
These features respond specifically to requests from the field that enable a broader and more complex range of application environments. Not only do both versions now support the MicroLogPRO, new 10bit datalogger but provide analysis functionality including statistics – maximum, minimum and average enabling a quick glance summary of the environment and historical analysis. This is usually used by pharmaceutical companies who need a constant bird's eye picture of the conditions their materials are kept in.
Mean kinetic temperature, an expression of cumulative thermal stress in different temperatures during storage, transportation and distribution.
Pasteurization provides analysis for the most common methods of pasteurization in Industry: High Temperature Short Time (HTST); Ultra Pasteurization (UP) and Ultra High Temperature (UHT) pasteurization.
Histogram provides a graphical view of historical results presented according to defined parameters of periods of time and percentage levels. This provides a level of analysis which can be tailored to specific environment needs for an immediate picture. For example this can be used in a museum environment where the percentage of time the humidity reached certain levels can be viewed.
Data can be clearly identified according to the ID number of the logger it came from and the threshold relevant to that logger. MicroLab automatically saves the data and produces daily status reports of your environment.
Daily download file management. In addition to the standard general method used in the MicroLab currently, Fourier is now providing a second method. This divides the data into daily 24 hour periods and stores them as separate whole units. Working with this method will complete data in corrupted files and provide full reports to meet external standards.
Text note enables text marks to be placed on the graph at relevant points where certain information needs to be highlighted.
Data records can be exported to your preferred spreadsheet using the included MicroLog 2 Excel software.
GMT Recording Setting data recording to meet with GMT - Greenwich Mean Time for use in international environments, particularly export and import.
MicroLog 2 Excel™ MicroLog 2 Excel™ Software
MicroLog 2 Excel takes MicroLog data and seamlessly transfers it to an Excel spreadsheet based on the sampling rate and external sensors that were predefined by the user. A single click on the 'downloading' icon transfers the entire disk memory of a MicroLog device to Excel. A similar version for the MAC Appleworks® spreadsheet is also available.
DatPass DatPass Software
All MicroLab and MicroLabPLUS software, when used in conjunction with DatPass software, is FDA Title 21 CFR Part 11 compliant. The software not only stores the data of each MicroLog but can also set the MicroLog alarm level, sampling rate and all other necessary parameters.
MicroLog / MicroLogPLUS External Sensors
MicroLog works with the following external sensors:
DT132 (2.5m) External Temperature Sensor
This MicroLog sensor takes external temperature measurements in a wider range than the internal temperature sensor. With a faster response time than the internal sensor, it enables measuring materials that cannot be measured with the internal sensor.
A general sensor that will measure any device or transmitter that produces a linear analog 0-10V output. The voltage can easily be converted to the correct measured units with the help of the Microlab program.
This MicroLog external sensor can sample any device or transmitter, producing a linear current between 0-20 mAmp. The 0-20 mAmp can be converted to the correct measured units by using Microlab¹s calibration option.
This MicroLog sensor monitors Reed Relay contacts and switch status (open/closed), to identify the correlation between phenomena such as temperature change and door status.
