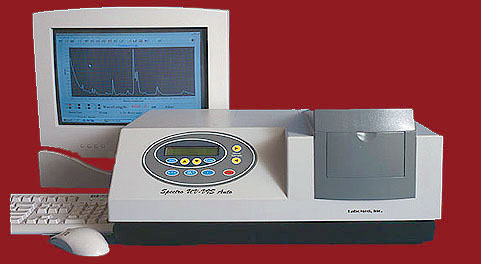

UV-2600 Spectro UV-Vis Auto Spectophotometer

½ÃÁß°¡°Ý : ¿ø
ÆǸŰ¡°Ý  : ¿ø
Æ÷ÀÎÆ® : Á¡
¼ö·® :
  PLUS   MINUS   °³
¡á ȸ¿ø°¡ÀÔÀ» ÇϽøé ÇÒÀεȰ¡°ÝÀ» º¸½Ç¼ö ÀÖ½À´Ï´Ù.
¡á ¸ðµç°¡°ÝÀººÎ°¡¼¼º°µµ ÀÔ´Ï´Ù.
¡á ȸ¿øÀÌ µÇ½Ã¸é °¡°Ýº¯µ¿Á¤º¸, ½ÅÁ¦Ç°, ƯÆÇÁ¦Ç°, ±â¼úÁ¤º¸µî ´Ù¾çÇÑ
´º½ºÁ¤º¸¸¦ º¸³»µå¸³´Ï´Ù.
¡á 30¸¸¿ø¹Ì¸¸Àº Åùèºñ 3,000¿ø(ÂøºÒ)ÀÔ´Ï´Ù.
¡á Ä«µå°áÀç½Ã ¼¼±Ý°è»ê¼­ ¹ßÇà ºÒ°¡ÇÕ´Ï´Ù.
¡á ¹è¼ÛÀº Æò±Õ 2~3ÀÏÁ¤µµ ¿¹»óµË´Ï´Ù.

»ó¼¼ÆäÀÌÁö¸¦ ¸¶ÀÌÇÇÇ÷Πº¸³»±â - À¥¿ë »ó¼¼ÆäÀÌÁö¸¦ twitter·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ facebookÀ¸·Î º¸³»±â »ó¼¼ÆäÀÌÁö¸¦ Me2Day·Î º¸³»±â

Spectro UV-Vis Auto is Labomed's latest in single beam UV-Vis Spectroscopy, with its seamless integration with any PC; makes managing data easy. The new 2 way communication system allows  the user, to give instructions right from your computer and gives you the ability to print and  record results in an easy to use interface. A 4nm bandwidth gives you the accuracy needed in today's laboratories and its auto adjustment feature makes it easy to work with, providing more answers to scientific problems in less time. Spectro UV-Vis Auto can be used in medical labs, biochemistry, petrochemistry, DNA tests, agriculture, educational, research and analytical labs. In addition, kinetic testing is possible by an optional sipper (electro thermal) system.

Software is included.

The software gives you the ability to control the spectrophotometer's operations by PC. In addition to saving data, the Spectro's software can save parameters, set wavelengths and give you automatic processing of concentration. Windows ¢â 95/98 compatible.



Features

Top of the Page

  • Automatic 8 Cell holder by microprocessor.

  • Auto A/T/C.

  • Auto Zero.

  • Auto Wavelength.

  • Auto Scanning by PC.

  • Auto Switching Deuterium and Tungsten lamps.

  • 2 way computer communication.

  • RS 232 computer interface.

  • 4 nm bandwidth.

  • Wide continuous wavelength.

  • Easy to change lamp.

  • USA/FDA licensed.

Accessories

Top of the Page

  • 8 square optical cells 10mm.

  • 2 square quartz cells 10 mm with lid.

  • Dust cover.

  • Computer link cable.

  • Instruction manual.

  • Power cable.

  • Optional: Peltier kinetic system

¡¡

Technical Specifications

Top of the Page

System: Auto adjustment system.

Wavelength: 200 to 1100 nm.

Spectral Bandwidth: 4 nm.

Scanning: By PC.

Light source: Deuterium and Tungsten

auto switch lamp.

Detector: Silicon photodiode.

Cell holder: Automatic 8 cell holder.

Display: LCD.

Keypad: Soft key.



Photometric measurement: Absorbance: 0-1.999 Transmittance: 0-100% T Concentration: 0-2000.

Stray light: 0.5 % T.

Wavelength accuracy: 1 nm.

Wavelength reproducibility: 1 nm.

Photometric range: 0-2  0-100% T.

Photometric accuracy: 0.5% T.

Software: Labomed Inc.(Included).

Kinetic: Electro thermal system (Optional)

Monocromator: 1200/nm grating mirror.

Printer: External (Optional).
