AR1000 접착력/해지력 시험기

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

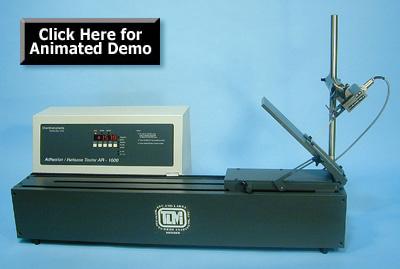

The AR-1000 Adhesion/ Release Tester with Digital Display is designed to perform PSTC, ASTM, TLMI, FINAT, and AFERA adhesion and release test procedures. It is the most versatile peel tester on the market.

The AR-1000 basic design was created over 15 years ago as an improvement over the TLMI release tester. The machine evolved from input gathered by technicians involved in Adhesion and Release testing all over the world. Since its’ introduction, it has become the standard in many plants and laboratories from all corners of the globe. This is due to the AR-1000’s ease of operation, reliability, simplicity of repair, and affordable price. Coupled with the Data Acquisition System and EZ-Lab software, the AR-1000 has become an integral part of network data collection and analysis.

Pull speed and test angles are adjustable to meet the requirements of PSTC 101 (A, B, C, D, E and F) and 4; ASTM D 3330; TLMI L-IA1, L-IA2, L-IA3; AFERA 4001 P11; and FINAT FTM 1-6, 10, and 11.

  • Digital Speed Controller with feedback loop allows speed to be set accurately from 12 to 1200 ipm (30 to 3048 cpm).
  • Test angle is adjustable from 90° to 180°.
  • Sturdy aluminum construction insures a long life with consistent performance.
  • Fast, accurate data acquisition and analysis simplified with the Data Acquisition System.
  • Data can be downloaded to EZ Lab software.
  • Accurate to ± 0.1% of load cell range.

Data Acquisition System

The EZ-100 Data Acquisition System is a state-of-the-art force measurement package that combines accuracy with ease of use. This system reads the force of a test, digitally displays it and also stores that value in it’s memory.

  • Displays the measured force in Average, High and Low values.
  • Stores data from up to 20 individual tests, which allows the technician to review previously recorded values.
  • Data and can be exported by RS-232 connection to a local PC.
  • Display values are selectable in grams, kilograms, ounces, pounds or Newtons.
  • Records 400 data points per second of sampling.

Accessories essential for testing: test panel — 2" x 6" (5cm x 15cm), 4.5 lb. (2 Kg) hand roller, 1" (2.5cm) specimen tape cutter.
Above items are included in our A/R Accessory Package(ATA).

EZ-Lab Compatible:
Remote operation control and enhanced data collection are possible when coupled with the EZ Lab System. Requires external PC. See EZ-Lab System product sheet.

Dimensions (approx.)) Force Measuring Option Options
Height:
Width:
Depth:
Weight:
24" (61cm)
36" (91cm)
13" (33cm)
92.2 lbs. (42 Kg)
• Digital Force Gauge (replacing Digital Display and Data Acquisition System) • EZ Lab System software
• Various sample holding fixtures available
• Coefficient of Friction fixture
• 240 VAC/50 Hz
• Load cell and force gaugee
