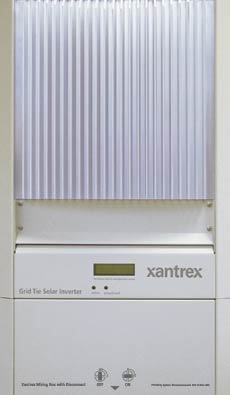

The Xantrex GT
3.0 Grid Tie Solar inverter from Xantrex/Trace offers 3000 watts of pure
sinewave power and excellent Price/Performance.
Now
on Sale for a limited time only!
Product Number:
2403001
Warranty:
5 year (10 year available)
The
GT 3.0 Grid Tie Solar Inverter is a three kilowatt high performance PV
string inverter that offers high efficiency, lower installed cost,
improved aesthetics and high reliability.
When
Xantrex set out to develop the GT 3.0 Grid Tie Solar Inverter we
listened to the experts - renewable energy dealers and installers. The
result is a high performance inverter that makes utility interactive
installations easier and more cost effective. Our three kilowatt high
performance PV string inverter offers high efficiency, lower installed
cost, improved aesthetics and high reliability. The GT 3.0 is a high
quality product that offers the best price/performance ratio in the
industry.
A
High Performance String Inverter:
• >94% peak and average efficiency maximizes your PV investment
• Fast MPPT tracking algorithm ensures maximum energy harvest from your
array under any conditions
• Excellent thermal performance: provides 3.0 kW up to 30º C and 2.5 kW
to 45º C with no fan required
• Optional fan kit extends thermal performance for extremely hot
climates
• FCC Part B compliance means less potential interference with
communication, radio, and consumer electronics
Easy and Less Costly to Install:
• Wide PV input MPPT tracking voltage range makes module selection and
sizing extremely flexible
• Includes a lightweight and versatile mounting bracket that simplifies
installation
• Modular design allows inverters to be mounted side by side using each
wiring box as a wiring raceway
• Easy access PV and utility terminal block simplifies wiring
• Integrated lockable utility/PV disconnect saves installation time and
balance of system component cost
• Wiring box can be separated from the sealed inverter enclosure
allowing DC/AC connections to remain intact in the unlikely event that
the inverter needs to be serviced
• Rugged NEMA 3R inverter enclosure allows reliable outdoor and indoor
installations
Full Featured Inverter Display and Communications:
• Liquid Crystal Display (LCD) provides instantaneous power, daily and
lifetime energy production, PV array voltage and current, utility
voltage and frequency, time online “selling” today, fault messages, and
installer customizable screens
• LCD vibration sensor allows the tap of a finger to turn backlight on
and display screen cycling
• Bright LED indicators provide system status at a glance
• Integrated RS232 and Xanbus RJ45 communication ports
• PC software for remote monitoring and system troubleshooting
Features
•
PV/Utility Disconnect Eliminates need for external PV (DC) disconnect.
Complies with NEC
•Cooling: Convection (no fan required)
•Wiring Box PV, Utility, Ground, and Communications connections. Wiring
box can be separated from inverter
•Display:
Backlit, two line, 16 character Liquid Crystal Display provides
instantaneous power, daily and lifetime energy production, PV array
voltage and current, utility voltage and frequency, time online
“selling” today, fault messages, and installer customizable screens
•Warranty
5 year parts and labor (10 year extended warranty available)
Model
Watts
Input Volts
Output Volts
Weght
Shp. Weight
Item
GT 3.0
3,000
190-600VDC
240 VAC
45lbs
59lbs
2430002
Inverter Accessory
Item
Price
Fan Kit For extreme temperatures and/or south facing
inverter installations
2430012
