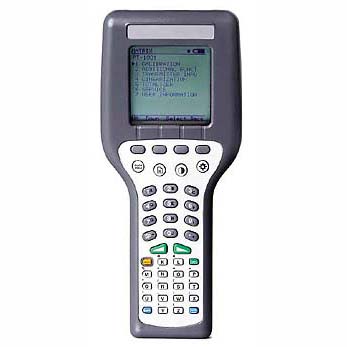

MR4100 HART Communicator Multfunction

제조사 : DAVIS
제품번호:MR4100
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The MR4100 is a full function HART® Communicator supporting Universal, Common Practice and Device Specific commands for total command of commissioning, configuration and maintenance operations.

MR4100 supports all HART® devices at the Universal and Common Practice command levels plus a large and growing list of devices with Device Specific commands. View our device list at www.meriam.com and click the "Available DOFs" button. Downloads of new files are free of charge for six months after shipment and for a small annual fee thereafter.
Features
  • Update device comm files via Internet – Communicator is never out of your hands
  • 9-line, backlit display
  • Edit directly from Review/Edit mode
  • 32 MB comm file memory
  • Upload / Download configurations
  • Document more than 200 configurations
  • Quick Menu access key
  • HART menu Home key
  • Full alpha-numeric keypad
  • Dedicated text edit keys
  • Programmable lock-out functions
  • Contrast adjust key
  • Elastic hand plus adjustable neck straps
  • Thumb keys for menu Up, Down, and Select

CAT NO. MODEL DEscRIPTION AVAIL PRICE
MR4100 MFC-4100 HART® Communicator Yes 5,636,520

Comes with test lead set and carrying case

MR4101 MFC-4101 HART® Communicator with Documenting capability Yes 6,040,440


Comes with test lead set and carrying case
Documenting requires separate purchse of Device Management System (DMS)

MR4102 MFC-4102 HART® Communicator with Intrinsically Safe rating Yes 5,994,540


Comes with test lead set and carrying case

MR4103 MFC-4103 HART® Communicator with Documenting capability & Intrinsically Safe rating Yes 6,224,040


Comes with test lead set and carrying case
Documenting requires separate purchse of Device Management System (DMS)

MR36875 A36875 OPTIONAL Carrying case (inc'd w/MFC)- std with adjustable shoulder strap & test lead compartment FOR HART® Communicator Yes 137,700

MR900529 A900529-00014 OPTIONAL HART® Test Lead Kit (inc'd w/MFC)- std banana plugs, mini- grabbers, 250 Ω resistor FOR HART® Communicator Yes 119,340

MR841429 A36742 OPTIONAL Power adapter, 100VAC to 240VAC, 50-60Hz FOR HART® Communicator Yes 84,456

MR841430 A36755 OPTIONAL Universal plug adapter kit for power adapter FOR HART® Communicator Yes 20,196
