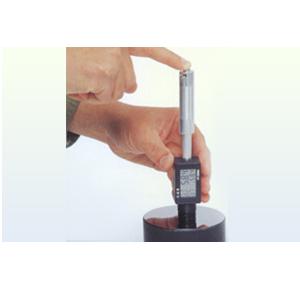

The HT-1000A and HT-2000A have many applications in the primary metals, metal fabrication, utilities, and petroleum, chemical, automotive and aerospace industries. Their small size and easy to use, one-handed operation makes them ideal for testing large and heavy forgings or castings, such as steel mill rolls and turbine housings. Also, due to their small size and portability, the testers can be used to test individual parts of a large assembly without taking the finished assembly apart. The testers can be used vertically or horizontally, and require only a small surface area to obtain a quick and accurate reading.

These versatile testers can be easily used by anyone, anywhere, to obtain direct accurate hardness readings.

Principle

The HT-1000A and HT-2000A hardness testers operate on the Leeb principle, a dynamic hardness test method based on velocity measurement. They include a guide tube and an impact body. The impact body contains a magnet and tungsten-carbide ball, measurements are performed using a spring to propel an impact body through a guide tube towards the test surface. When the ball is within 1 mm of the part’s surface, the magnet induces a voltage into a coil surrounding the guide tube. After penetration, the impact body rebounds and the magnet returns through the coil inducing a second voltage. Both voltages are proportional to the velocity of the impact body.
