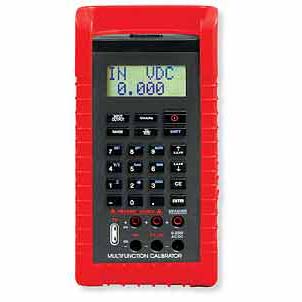

ML1000 Multifunction Calibrator

제조사 : DAVIS
제품번호:ML1000
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Features
  • Excellent accuracy ±0.5° T/C ±0.3°C RTD and 0.015% electrical, volts, amps and frequency
  • Choose either read or source modes
  • Compatible with all Fluke pressure modules
  • Operates with external pressure modules
  • 10 T/C types; 8 RTD types plus YSI 400 series thermistor (medical applications)
  • Full function 4-20 mA read, source, simulate and read/power modes with 0.015% reading accuracy
  • Source 0-20 volts or read 0-20 volts with 0.015% of reading accuracy
  • Measure 0-250 VDC or VAC
  • Direct keyboard entry allows for quick output changes
  • Store up to nine setpoints for each output function
  • RTD function works with all pulsed XMTR’s
  • RS232 Interface
  • Each unit includes test leads, carrying case, 4 AA alkaline batteries, NIST Traceable Certificate and instruction manual


SPECIFICATIONS

Operating Temp

0 to 50°C
Storage Temp -20 to 60°C
Stability 0.005% F.S. °C outside of 23°C ±5°C
Pressure Ranges Compatible with all Fluke 700 Series pressure modules
T/C Ranges J, K, T, E,R, S, N, B, L, U including 10 to 75 mV
RTD Ranges PT 385 (100, 200, 500, 1000 Ohms)
Pt 392, JIS, Ni 120, CU10, YSI 400
Ohms Ranges 0 to 400.00 and 400.0 to 4000.0
mA Range 0 to 24.000 mA
Voltage  (Low) Input/Output 0-20.000 V
(High) Input only 0-250 VDC or VAC
Frequency   0-1000.0 CPM
0-1000.0 Hz
0-10.00 KHz
Continuity 0 to 400.0 Ohms, audible tone when under 10 Ohms
Operating Temp. -10°C to 50°C
Storage Temp. -40°C to 60°C
Loop Power 4 AA Alkaline Cells, 25 hours typical operating time
Size 7.5" x 4" x 1.5"

CAT NO. MODEL DEscRIPTION AVAIL PRICE
ML1000   MC-1000   MULTI-FUNCTION CALIBRATOR   Yes   2,377,620
ML700   700MA   OPTIONAL ADAPTER FOR PRESSURE MODULES FOR High Accuracy Multi-Function Calibrator   Yes   110,068



Pressure Modules (Must be used with ML700 adapter)
ML342102   CC572   OPTIONAL Carrying Case FOR High Accuracy Multi-Function Calibrator   Yes   89,964
ML342103   1001-9V   OPTIONAL AC ADAPTOR FOR High Accuracy Multi-Function Calibrator   Yes   40,392
