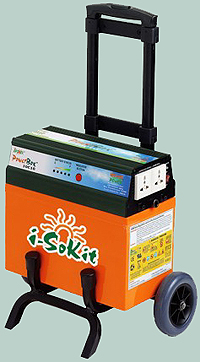

PowerBox CV-6C10 (600W)

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

HP-Series Back to top
Electrical Specifications: 6C10 / 6S10 8C10 / 8S10 10C10 / 10S10
12 V DC section
Internal Power Bank / Battery Brillhaus™ AGM Sealed Lead Acid Battery
Internal Battery Capacity (Ah) 100
Internal Battery Voltage (V) 12
DC power socket (A) 12 (automatic reset)
(Circuit breaker rating)
Inverter no-load current drawn (A) 0.5 0.5 1
No. of 12V DC receptacle(s) 2
Jump Starter 900 900 1100
Peak Ampere (A) 1600
Boost Ampere (A) 1000
115/230 V AC section
Max. continuous AC output power (W) 600 800 1000
Surge capability (W) 1200 1600 2000
RMS AC voltage & frequency RMS 115 / 230 VAC +/- 5%
AC output waveform Modified Sine Wave
No. of AC receptacle(s) 2
Charging System:
AC charging current (A) 5 (max.)
Peak charging voltage 14.4 VDC
Charge restart voltage 13.6 VDC
General Specifications:
Storage temperature -10°C~60°XC (14°F~140°F)
Operating temperature -5°C~50°C(23°F~122°F )
Inverter low battery alarm alert 10.8 VDC
Inverter low battery shutdown 10.0 VDC
Over Voltage shutdown 15.6 VDC
Overload auto shutdow > 600 > 800 > 1000
Thermal shutdown > 60°C (> 140°F)
Dimensions (mm) 900 / 376 x 390 x 307
H(with handle) / (without handle) x W x D
Weight (kg) Approx. 39KG
Remarks Design and specifications subject to change without prior notice
