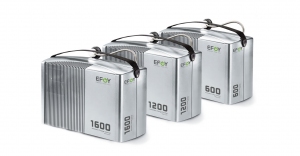

The EFOY fuel cell comes in
three different ratings:
EFOY 1600 with a capacity of 1.6 kWh per
day
EFOY 1200 with a capacity of 1.2 kWh per
day
EFOY 600 with a capacity of 0.6 KWh per
day.
Now, there’s a perfect solution to every
energy need.
No matter which EFOY fuel cell you choose,
they all provide these unique benefits:
Light weight
Each EFOY fuel cell weighs only 7.5 kg.
Quiet
An EFOY fuel cell is no louder than a
computer.
Environmentally Friendly
An EFOY fuel cell generates - aside from
electricity – only water and carbon dioxide.
100% Availability
Regardless of weather, day and night, in any
season – whenever you need electricity.
Fully automatic
Thanks to the Automatic Charge Control, the
EFOY fuel cell operates fully automatically and
only when needed. You needn’t worry about a
thing.
Convenient
The EFOY fuel cell is easy to operate and
convenient to use thanks to digital remote
control.
Need more power?
No problem – You can run up to five EFOY fuel
cells in parallel to obtain a capacity of up to
8,000 Wh per day.
Device
EFOY 600
EFOY 1200
EFOY 1600
Charging capacity
600 Wh/day
50 Ah/day
1,200 Wh/day
100 Ah/day
1,600 Wh/day
130 Ah/day
Nominal voltage
12 V
12 V
12 V
Nominal power
25 W
50 W
65 W
Nominal current
2.1 A
4.2 A
5.4 A
Methanol consumption
1.1 l/kWh
1.3 l/100 Ah
1.1 l/kWh
1.3 l/100 Ah
1.1 l/kWh
1.3 l/100 Ah
Noise emission
20*/33**dB(A)
23*/39**dB(A)
23*/39**dB(A)
Weight
6.3 kg
7.5 kg
7.6 kg
Dimension in cm (LxWxH)
43.5 x 20.0 x 27.6
43.5 x 20.0 x 27.6
43.5 x 20.0 x 27.6
Recommended
batteries
12 V lead batteries
(lead-acid or lead-gel), capacity 40 to 200 Ah
12 V lead batteries
(lead-acid or lead-gel), capacity 40 to 200 Ah
12 V lead batteries
(lead-acid or lead-gel), capacity 40 to 200 Ah
* at 7m distance ** at 1m distance
What is a fuel cell?
Fuel cells convert chemical
energy directly into electrical energy, which makes fuel
cells particularly efficient. The essential technical
difference between fuel cells and batteries is that fuel
cells separate energy transformation and energy storage.
The fuel cell will continue to generate electrical
current as long as a gas of liquid medium is added. SFC
has patented a method of converting energy using fuel
cells that allows for miniaturization by focusing on
simplified fuel intake, sealing and electrical
configuration. We have also used low-cost materials and
mass production techniques to lower the cost of
manufacturing fuel cells. "Active Crossover Control" by
SFC permits active monitoring and minimization of the
negative methanol crossover effect, thus upping the fuel
cell’s performance. The result is an extremely short
startup time and highly efficient fuel cells by SFC.
We have developed our own
technology, which in turn, has provided the basis for
several patents. As a result, SFC enjoys a unique
technological and marketing edge in fuel-cell systems.
How do DMFC fuel cells work?
Low-temperature fuel cells are
suitable for mobile applications because they generate
electricity at low temperatures. The two main types are
hydrogen fuel cells and direct methanol fuel cells. SFC
has made a conscious decision to go with DMFC technology
because methanol is safer and more affordable.
Here is how a DMFC fuel cell works:
A mixture of methanol and water is
introduced to the anode side by a patented internal
water-management system. This enables us to employ 100%
pure methanol in our fuel cartridges. Ambient air is
pumped into the fuel cell on the cathode side. An
electrical circuit connects the anode and the cathode
sides. Upon contact with the platinum catalyst, methanol
releases its electrons which flow in the direction of
the cathode. At the same time, protons are released and
these penetrate the membrane to the cathode. There,
oxygen reacts with the proton and electrons to form pure
water.
During the chemical process, the fuel cell heats up to
about 40° C, releasing water as vapor and carbon
dioxide. The amount of water vapor and carbon dioxide
released is comparable to that found in the breath of a
child.
Want to know more about
environmentally friendly methanol?
