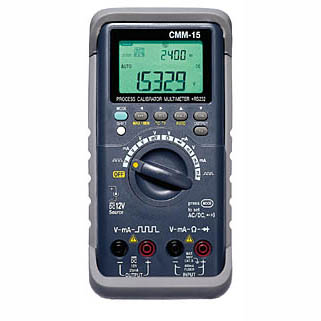

EHCMM-15 Process Calibrator Multimeter

제조사 : DAVIS
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

DMM Features
  • Measure DCma, ACma, DCV, ACV, AC+DC, Temperature, Frequency, Duty Cycle, Pulse Width, Resistance, Continuity, and Diode
  • 1 µV or 1µA resolution with 0.03% basic DCV accuracy
  • 1ms Peak Hold for glitch capture, plus Data Hold, relative and dynamis recording capture, plus Data Hold, relative and dynamic recording
  • ACV and DCV to 600V (EHCMM-13)


Calibrator Features
  • Simultaneous source and measure on large dual display
  • Precision constant voltage and current calibration source with 0.03% accuracy
  • Constant current output for loads up to 500
  • Bipolar current (±25mA) and voltage (±1.5V, ±15V) outputs
  • Wide range Frequency (square wave) source with adjustable amplitude, pulse width, and duty cycle
  • Programmable 16 step memory for continuous, or step output and 999 step ramp mercury
  • Windows 95/98 software

CAT NO. MODEL DEscRIPTION AVAIL PRICE
EHCMM15   CMM-15R   PROCESS CALIBRATOR MULTIMETER W/ SOFTWARE AND CABLE   Yes   1,077,840



EH149116   149116   OPTIONAL 117VAC ADAPTOR 12VDC SOURCE   Yes   34,884
EH149230   149230   OPT 120VAC ADAPTOR 12VDC SOURCE   Yes   34,884
