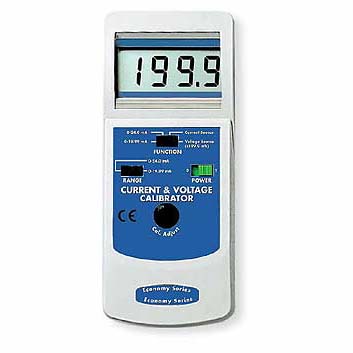

ML29125 Voltage/Current Calibrator

제조사 : DAVIS
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Voltage/Current Calibrator provides an adjustable, precision 0-24 mA current, and ±199.9 mV DC sources. It can power or measure 2-wire current loops, and the current calibrator can drive loads up to 500 Ohms.

Features
  • Portable instrument for calibrating process devices and measuring process signals
  • Adjustable precision 0-24 mA current source
  • Adjustable ±199.9 mV DCV source
  • Current calibrator drives loads up to 500 Ohms
  • Power or measure 2-wire current loop

SPECIFICATIONS
(23 °C ± 5 °C; specifications are tested under the environment RF Field Strength of <3 V/M and frequency <30 MHz)
Display LCD display; display counts 1999 max.
13 mm (0.5) digit size
Resolution/Accuracy
Current Source (1) (2)
  0.01 mA ±(0.25% FS + 1 count)
Current Measurement
  0.01 mA ±(0.25% FS + 1 count)
2-Wire Loop Power/Current Measurement (3)
  0.01 mA ±(0.25% FS + 1 count)
DC mV Source (4)
  0.1 mV ±(0.5% FS + 1 count)
Sampling Time Approx. 0.4 seconds
Power Supply 9V DC battery
Dimensions 185 x 78 x 38 mm (7.3 x 3.0 x 1.5 inch)
Weight 265 g/9.2 oz.

 Notes:
1. Output 0 to 24 mA current for loads up to 500 Ohms.
2. Output >20 mA current for loads up to 400 Ohms.
3. Provides DC 12 V ± 2 V power to the loop and measures current.
4. Measured output load impedance should be >1 kOhms.


CAT NO. MODEL DEscRIPTION AVAIL PRICE
ML29125   LCC421   Voltage/Current Calibrator   Yes   457,164
ML29114   LCA-05A   OPTIONAL Carrying Case FOR Voltage/Current Calibrator   Yes   33,048
