Prova200 태양전지 성능측정기

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

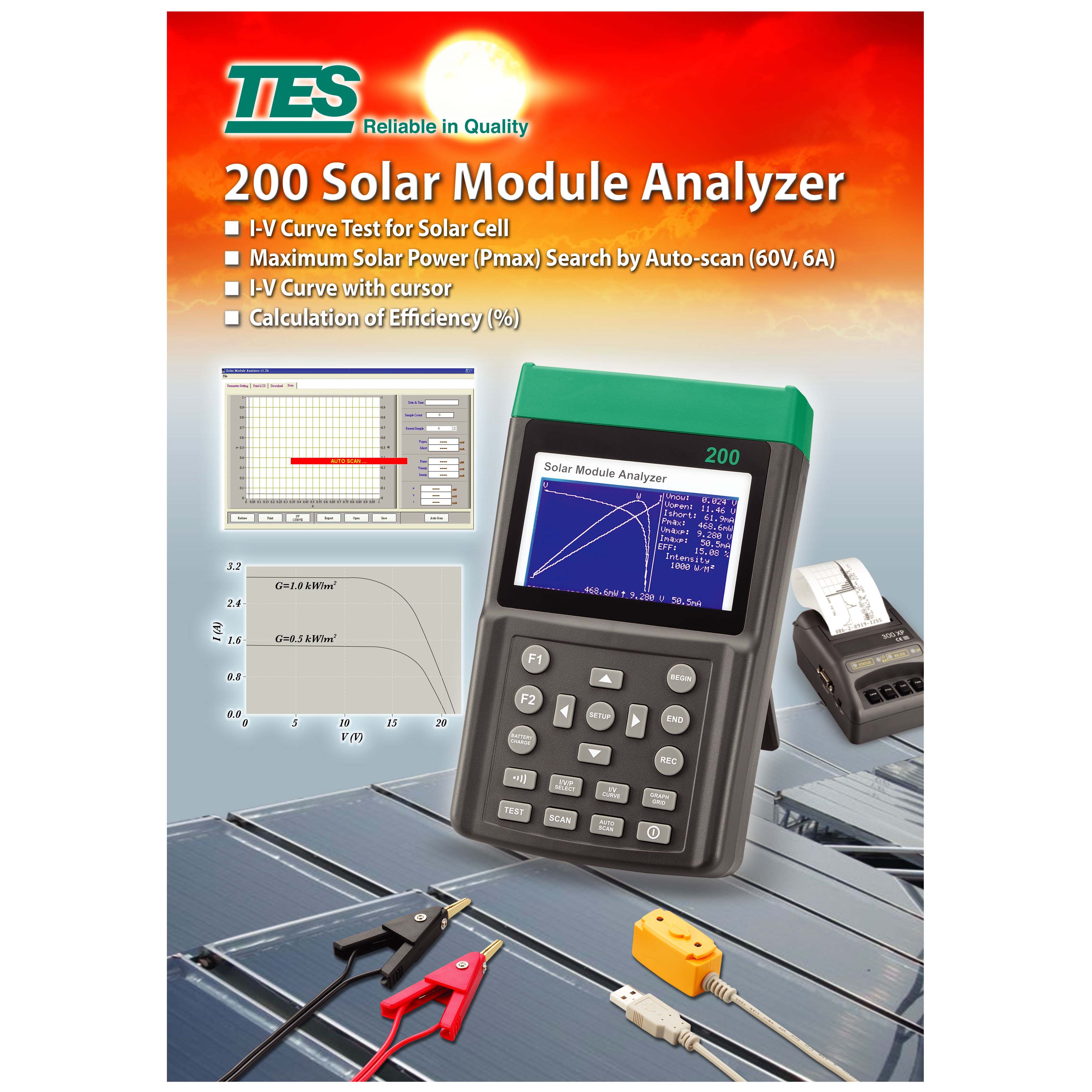

PROVA 200 Solar Module Analyzer

  • I-V Curve Test for Solar Cell.
  • Maximum Solar Power (Pmax) Search by Auto-scan (60V, 6A)
  • Maximum Voltage (Vmaxp) at Pmax
  • Maximum Current (Imaxp) at Pmax
  • Voltage at open circuit (Vopen)
  • Current at short circuit (Ishort)
  • I-V curve with cursor
  • Optional printer (model: 300XP) to hardcopy I-V curve
  • Calculation of Efficiency (%)
  • Manual single point test




Electrical Specifications (23℃±5℃)

DC Voltage:

Range Resolution Accuracy
0–10V
0.001V
±1% ± 18 dgts
10–60V
0.01V
±1% ± 18 dgts
DC Current:

Range Resolution Accuracy
0–1A
0.1mA
±1% ± 18 dgts
1–6A
1mA
±1% ± 18 dgts
General Specifications:
Battery Type:
1.2V AA rechargeable battery x 8(2700mAh)
AC Adaptor:
AC 110V or 220V input,
DC 12V/3A output
Dimension:
257 (L) x 155 (W) x 57 (H) mm
10.1 (L) x 6.1 (W) x 2.2 (H) in
Weight:
1160 g / 40.9 oz
(battery included)
Accessories:
Users manual x 1
1.2V AA rechargeable battery x 8
1 set of Kelvin clips (2 clips, 5A max.)
 [사용방법]

▶Prova 200 은  60V, 6A  까지의  솔라 모듈의 정격전압/정격전류/전력/개방전압/단락전류,     I-V  curve  등의 측정이 가능 합니다.

▶일기가 좋은날  솔라모듈을 정남향에 설치하고 측정 요망  (1000W/m2 의 일사량 조건임)

▶소형 솔라모듈 이면  (5W  미만 인 경우  )  노광 장비가 있는  Prova SS1을 사용 합니다.





PROVA-300XP Portable Thermal Printer

  • Portable Field Printing for Certificate
  • Text and Graphics
  • Two Selectable Fonts (5*7 and 8*16)
  • Programmable text Header and Footer
  • Battery and AC Power Adaptor
  • RS-232C Interface (Optional RS-232C to USB Bridge)
  • Fixed Interval Continuous Printing(5, 30, 60, 300 seconds)
Printing Mechanical Specification
Method
Thermal Dot Printing
Dot Per Line
8 (vertical) * 166 ( horizontal )
Fonts
5*7 and 10*15
Dot Pitch
0.35 mm ( vertical ) , 0.28mm ( horizontal )
Character Size
1.4 * 2.4 mm ( 5 * 7 ), 2.8 * 4.6 mm ( 10 * 15 )
Characters Per Line
27 (5 * 7 ), 16 ( 10 * 15 )
Printing Contrast
Auto and User Selectable
Printing Width
46mm
Printing Speed
0.8 lines / second
Printing Life
500.000 lines
Paper Width
57 mm

Communication

Interface RS-232C (9600,8,1,N)
Receiving Buffer 9K bytes
Character set ASCII International
Graphics Bit Map
Option USB to RS -232C Bridge

Mechanical and Environmental Specification

Operating Temperature -10℃ ~ 50℃
Storage Temperature -20 ℃ ~ 60℃
Humidity 0 ~ 90% RH (Non-condensing)
Batteries 8*1.5V
AC Power Adaptor DC 12V
Dimension 95mm(W)*135mm(D)*55mm(H)
Weight 440g ( 8 batteries included)
