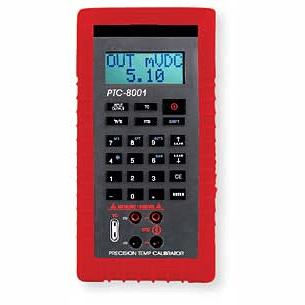

ML3820011 High Accuracy Temperature Calibrator

제조사 : DAVIS
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

This Precision Temperature Calibrator is an ideal device to handle all of your temperature calibration needs in a truly rugged, low cost package. It combines virtually all widely used thermocouples and RTDs in one device—you’ll never have to worry about finding a temperature device you can’t calibrate. This is especially true when calibrating “smart” or pulsed RTD transmitters where many other calibrators fail to work or operate at reduced accuracy specs. The unit handles those applications with ease.

Features
  • High accuracy ±0.4°C and ±0.3°C RTD all errors included
  • 10 T/C types and 8 RTD types including PT 385 (1000 ohm) and CU (10 ohm)
  • Direct keyboard entry or scroll control of output
  • NEMA 4 rated case, rugged design
  • RTD simulation works with all pulsed (smart transmitters)
  • YSI 400 series thermistor range for medical application
  • Standard mini-plug or banana jack connections for T/C
  • Store up to nine setpoints for each output function
  • RS232 Interface
  • Thermocouple & RTD Capability in one unit
  • Works with Rosemont 3144 and all other "smart" transmitters
  • Each unit includes: Test leads, rubber boot, 4 AA alkaline batteries, NIST Certificate and instruction manual

SPECIFICATIONS

T/C Ranges

J, K, T, E, R, S, N, B, L, U including -10 to 70 nmV range
RTD Ranges Pt 385 (100, 200, 500, 1000 ohms)
Pt392, JIS, Ni, 120, CU10, YSI 400
Ohms Ranges 0 to 400.00 and 400.00 to 4000.0
Accuracy T/C Type J: ±.3°C ±10μ
V (±0.6°C total error)
RTD PT100: ±.1°C ± .075 Ω
(±0.3°C total error)
Ohms (400): ±0.1Ω
Ohms (4000): ±1.0Ω

CAT NO. MODEL DEscRIPTION AVAIL PRICE
ML3820011   PTC-8000   TEMPERATURE CALIBRATOR   Yes   1,826,820
ML80029   80029   OPTIONAL THERMOCOUPLE CABLE KIT FOR High Accuracy Temperature Calibrator   Yes   181,764
Kit includes: Type J T/C Cable, Type K T/C Cable, Type T T/C Cable and Type E T/C Cable All cables are terminated with a standard mini-connector on one end and bare leads on the other.
ML02   10077   OPTIONAL "AA" NICAD BATTERY (SOLD EACH) FOR High Accuracy Temperature Calibrator   Yes   15,606/font>



ML342103   1001-9V   OPTIONAL AC ADAPTOR FOR High Accuracy Temperature Calibrator   Yes   40,392
