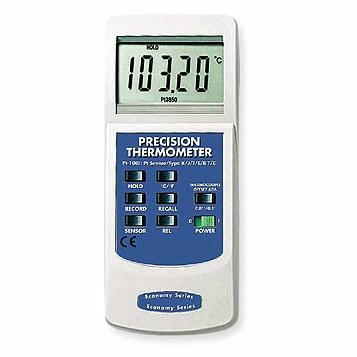

The ML29112 Precision Thermometer and ML29113 (Pt-100) Temperature Probe combination provide a precision thermometer with high accuracy and 0.01 °C resolution. The ML29112 accepts Platinum Pt-100 Ohm probes, as well as Type K, J, T, E, and R thermocouples.
Features
Precision thermometer with high accuracy and 0.01°C resolution
Accepts Platinum Pt-100 Ohm and thermocouple Type K/J/T/E/R probes
0.01 degree high resolution both for Platinum & Thermocouple probe input
Pt-100 probe input compatible with an 0.00385 alpha coefficient, and meets DIN IEC 751
Compatible with 4-wire Pt-100 Ohm probe
-100 °C to 1370 °C (Type K) display range
Built-in front panel °C & °F select button and 0.01/0.1 degree select switch
Large LCD with unit display
Data hold function for storing displayed value
Front panel Sensor Select button provides easy probe change
Memory function to record the maximum & minimum reading with recall
Built-in REL button for relative measurement
Built-in low battery indicator
SPECIFICATIONS — ML29112
Display
62 mm x 34 mm LCD display
(2.4 x 1.3 inch) 13 mm (0.5) digit size
Sensor Type
Platinum Pt-100 Ohm (0.00385 alpha coefficient, meets DIN IEC 751)
Thermocouple Type K, Type J, Type T, Type E, Type R
Probe Input Socket
Pt-100 Ohm Probe
DIN 4-pin socket
Thermocouple Probe
Std 2-pin Type K socket
Sampling Time
Pt-100 Ohm Probe
Approx. 1.5 sec
Thermocouple Types K/J/T/E/R
Approx. 2.5 sec.
Overload Indication
Displays "- - - -"
Measurement Range/Resolution/Accuracy
Platinum, Pt-100 Ohm
±0.1% ±0.2 °C/ ±0.4 °F
Type K Thermocouple
±0.1% ±0.5 °C/±0.9°F
Type J Thermocouple
±0.1% ±0.5°C/±0.9°F
Type T Thermocouple
±0.1% ±0.5°C/±0.9°F
Type E Thermocouple
±0.1% ±0.5°C/±0.9°F
Type R Thermocouple
±0.1% ±1°C max./±2°F max.
Operating Temperature
0 to 50 °C (32 to 122 °F)
Operating Humidity
Less than 80% RH
Power Supply
9V DC battery
Heavy duty or Alkaline type
Power Consumption
Approx. DC 15 mA
Weight
285 g/9.9 oz.
Dimensions (HxWxD)
180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch)
SPECIFICATIONS
Curve
Compatible with an 0.00385 alpha coefficient; meets DIN IEC 751
Class A
0 °C Resistance 100 Ohms
Measurement Range
-50 to 400 °C/-58 to 752 °F
Accuracy
(0.15 + (0.002 x T)) °C; T= measuring temperature (1)
Plug
DIN plug, 4-pins/4-wires
Dimensions
Sensing Head
152 mm tube (6 inch)
Probe Length Overall
245 mm (9.6 inch)
Notes: 1. The accuracy specified is for the meter only and does not include T/C errors.
For example: Accuracy is 0.15 °C for 0 °C reading. Accuracy is 0.35 °C for 100 °C reading. Accuracy is 0.95 °C for 400 °C reading.
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
ML29112
LTM-917
Precision Thermometer
Yes
548,964
ML29113
LTP-100
Pt-100 Temperature Probe
Yes
291,924
ML29114
LCA-05A
OPTIONAL Carrying Case FOR Precision Thermometer & Temperature Probe
Yes
33,048
ML29115
TP-K01
OPTIONAL Bead Probe FOR Precision Thermometer & Temperature Probe
Yes
16,524
ML29116
TP-K02
OPTIONAL Immersion Probe FOR Precision Thermometer & Temperature Probe
Yes
73,440
ML29117
TP-K03
OPTIONAL Surface Probe FOR Precision Thermometer & Temperature Probe
Yes
104,652
ML29118
TP-K04
OPTIONAL Piercing Probe FOR Precision Thermometer & Temperature Probe
Yes
104,652
ML29119
TP-K05
OPTIONAL Surface Probe FOR Precision Thermometer & Temperature Probe
Yes
152,388
ML29120
TP-K06
OPTIONAL Air and Gas Probe FOR Precision Thermometer & Temperature Probe
Yes
111,996
