5KW 수직형 풍력발전기 SKW5000W

판매가격 : 전화문의
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

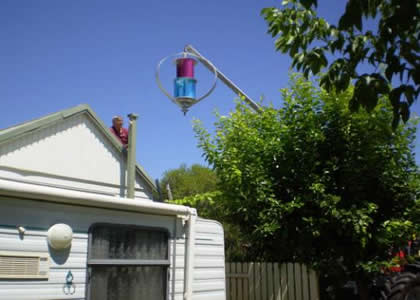

Vertical axis wind turbine


 Lowest cut-in wind speed
  1.5 m/s for power production


No noise, no vibrations (sound level
  < 25 dB at 7 m/s from 10 m distance)

Adaptable for hybrid solutions
  with solar and other sources of energy

Permanent power supply from wind/solar
  and continuous battery charging

Technically advanced Maglev generator
  No mechanical friction

Best price-performance ratio All weather resistant
  (rain, ice, heat, salt, sand)


Independent of wind direction

Suitable for roof fixation

Maintenance-free


Safety for people and nature



PARAMETER

VERTICAL WIND TURBINE MODEL NUMBER

SKV5000W

Rated Power

5KW

Size(Height / Diameter)

3.53m/3.9m

Blades Material

aluminum alloy

Start-up Wind Speed

1.5m/s

Minimum Power Generation Wind Speed

2.5m/s

Cut-in wind speed

4m/s

Rated Wind Speed

13m/s

Cut out Wind Speed

15m/s

Survival Wind Speed

60m/s

Generator Type

AC, 3 phases

Controller Output Voltage

48V/96V

Controller Braking System

3-Phase short circuit by NFB brake

Ambient Temperature

.-30~50°C
