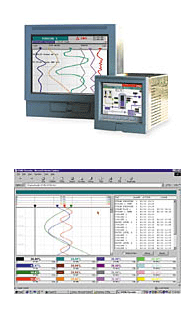

CH6001 Graphic Data Acquisition Recorder

제조사 : DAVIS
시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

The Series 5000 uses the very latest in RISC processor technology to give a powerful platform now and for the future. Communication via Ethernet makes it an industry standard networking tool–process data has never been so easily available while still maintaining integrity and security.

The units offer unrivaled input accuracy with a 125ms total sample rate for up to 48 input channels. All have onboard Flash data storage capability, Ethernet communication and either a PC card or floppy disk reader. All data is stored in a tamper-proof binary format that can be used for secure, long-term records of your process. The 5000 series is truly designed for today’s network world, units can be accessed via a Local Area Network, dial-up connection, Intranet or Internet.


Features
  • Ethernet enabled
  • FTP and Modbus® TCP/IP
  • Touch Screen operation
  • Custom screens
  • Plant mimic
  • Local or network archiving
  • PC based configuration program
  • Live remote view on PC
  • Universal inputs
  • 125ms input scan rate

SPECIFICATIONS


CH6001

CH600

CH1200

No inputs

6

6 or 12

6 to 48

Display type

5" Standard Color

5.5" (139.7 mm) (1/4 VGA) TFT Color LCD

12.1" (307.34 mm)(SVGA) TFT color LCD

User interface

Touch

Touch sensitive screen

Touch sensitive screen

Configurable

•

•

•

Relay outputs

Fixed-1

3 to 12

3 to 27

Communications

Ethernet

Ethernet

Ethernet

Datalogging

•

•

•

Archive media

ATA & compact flash or 3.5" disk

ATA & compact flash or 3.5" disk

ATA & compact flash or 3.5" disk

Totalizer, timers and counters

Optional (Limited)

Optional

Optional


CAT NO. MODEL DEscRIPTION AVAIL PRICE
CH6001   5100E   Graphic Data Acquisition Recorder, 6 channels with Windows® software   Yes   3,112,020
CH600   5100V   DATA ACQUISITION RECORDER W/ SOFTWARE 6 CHANNEL   Yes   4,498,200



CH1201   5100V   Graphic Data Acquisition Recorder, 12 channels with Windows® software   Yes   5,324,400



CH1200   5180V 12 CHANNEL   DATA ACQUISITION RECORDER W/ SOFTWARE 12 CHANNEL   Yes   6,976,800



CH2400   5180V 24 CHANNEL   DATA ACQUISITION RECORDER W/ SOFTWARE 24 CHANNEL   Yes   8,445,600



CH3600   5180V   Graphic Data Acquisition Recorder, 36 channels with Windows® software   Yes   9,914,400



CH2401       OPTIONAL 1 GB MEMORY CARD FOR Graphic Data Acquisition Recorders   Yes   1,321,920



CH2402       OPTIONAL 20 MB FLASH ATA CARD FOR Graphic Data Acquisition Recorders   Yes   642,600
