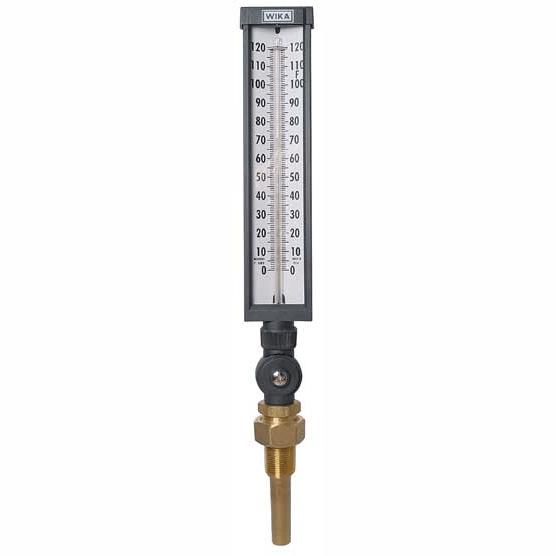

WK9010300004WI Glass Thermometer

제조사 : DAVIS
제품번호:WK9010300004WI
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Glass Thermometer, Range: 0 / 120 °F, Stem Length: 3 1/2" WIKA industrial glass thermometers
WIKA industrial glass thermometers offer quick, easy-to-read temperature measurement for tough applications. Glass/mineral reinforced GE Valox ® housings and spring-mounted windows contribute to impact, shock and vibration resistance. WIKA industrial glass thermometers are the ideal choice for process piping, HVAC/R applications, diesel engines and compressors.

The Just-Rite model, available with 7" and 9" scales, has a fully adjustable connection for easy reading at any angle. WIKA 6" industrial glass thermometers are manufactured in straight and back connected configurations, and come with a standard dual threaded brass socket with both 1/2" and 3/4" NPT connections.

9 Inch Scale, 1 1/4" - 18" Swivel Nut Connection


Features
  • Case: V-shaped case parts are molded of rugged GE Valox ® 735 polyester, finished in textured black. Heavy glass window is spring-mounted to prevent rattles
  • Stem: To ensure sensitivity, bulb chambers are precision ground aluminum, tapered for a close-tolerance metal-to-metal contact with matching tapered socket. Graphite is used as a conductor between bulb chamber and glass tube
  • Locking Device: Independent adjustable case locknut and angle adjusting screw provide 360° positioning of case and stem
  • Adjustable Joint: Matching GE Valox ® joint completely encloses capillary for thermal system protection
  • Tube and Capillary: Mercury-filled (Spirit Fill available), “Red-Reading” magnifying lens tube is silicone shock-mounted to increase service life. Guaranteed accurate to within 1% of scale range
  • Scale: Permanently baked-on, bold black graduations are printed on white-coated aluminum. No mounting screws obscure scale. Scale adjusts through locking device at top of instrument

CAT NO. MODEL DEscRIPTION AVAIL PRICE
WK9010300004WI       Glass Thermometer, Range: 0 / 120 °F, Stem Length: 3 1/2"   Yes   108,324
WK9010300007WI       Glass Thermometer, Range: 30 / 240 °F, Stem Length: 3 1/2"   Yes   108,324
WK9010300204WI       Glass Thermometer, Range: 0 / 120 °F, Stem Length: 3 1/2"   Yes   108,324
WK9010300205WI       Glass Thermometer, Range: 0 / 160 °F, Stem Length: 3 1/2"   Yes   108,324
WK9010300206WI       Glass Thermometer, Range: 30 / 180 °F, Stem Length: 3 1/2"   Yes   108,324
WK9010300207WI       Glass Thermometer, Range: 30 / 240 °F, Stem Length: 3 1/2"   Yes   108,324
WK9010600204WI       Glass Thermometer, Range: 0 / 120 °F, Stem Length: 6"   Yes   156,060
WK9010600208WI       Glass Thermometer, Range: 30 / 300 °F, Stem Length: 6"   Yes   156,060
WK9010900204WI       Glass Thermometer, Range: 0 / 120 °F, Stem Length: 9"   Yes   229,500
WK9010900208WI       Glass Thermometer, Range: 30 / 300 °F, Stem Length: 9"   Yes   229,500
WK9011200204WI       Glass Thermometer, Range: 0 / 120 °F, Stem Length: 12"   Yes   257,040
WK9011200208WI       Glass Thermometer, Range: 30 / 300 °F, Stem Length: 12"   Yes   257,040
