IT8928 Temperature range:-40°F to 185°F (-40° to 85°C),IT8926 Temperature range:-40°F to 185°F(-40° to 85°C)

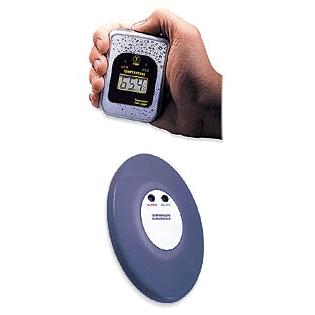

IT8926 & IT8928
LCD screen for displaying data
Rugged water resistant housing
°F or °C selectable
Start / stop logging by programmed schedule or internal magnetic switch
Readings may be taken at intervals from 1 second to 2 hours
Stored readings may be downloaded to any PC and viewed or graphed
Sample point: 1K, 2K, 4K, 8K, 12K, 16K records for selection
User defined min and max alarm settings
Thermistor temperature sensor
Selectable non-sleep mode for viewing current temperature and humidity conditions. May be turned off after readings are stored
NOTE: The datalogger by itself cannot function without the software and docking station
IT8808 (Temperature only)
Waterproof housing
Start / stop logging by programmed schedule or internal magnetic switch
Readings may be taken at intervals from 1 second to 2 hours
User-defined min/max alarm setting
Data is retained in non-volatile memory, no loss when battery is low or has been removed or requires replacement
Real-time clock memory
Docking station, RS-232 cable, Windows® 95/98/2000/NT/XP compatible software and 3.6V lithium battery sold separately
NOTE: The datalogger by itself cannot function without the software and docking station Model IT8927
IT980 (Desktop Printer for Dataloggers)
For use with the datalogger models IT8926, IT8928, IT8808
Prints collected data in text or graph format
Small size fits in the palm of your hand
LCD display with Matrix LCD
Input: RS-232C Data: 8 bits; Stop: 1 bit
Baud rate selectable at 4800 bps or 9600 bps
Dimension: 4.72” x 5.9” x 1.88”
Includes printer, thermo-paper and batteries
Set up data loggers without a personal computer for start recording, sampling interval, recording points, hi/low temperature or humidity alarm setting, °C or °F
Printing characteristics: a) Voltage compensating to stabilize the contrast of printing, b) Paper jam protection, c) Paper feed, d) Printing contrast: 1 to 9, e) Print type by report or graphic (Font: Roman 8)
Interface Kit
Downloads collected data to your PC via the docking station and RS-232 cable graphing and printing
Using the INT8818 will enable you to display all collected information on your PC or laptop
Software compatible with Windows® 95/98/2000/NT/XP
Includes data logger base, RS-232 cable and Windows® software
NOTE: This kit is necessary in order to correctly use all data loggers
IT8928 SPECIFICATIONS
Temperature range
-40°F to 185°F (-40° to 85°C)
Temperature accuracy
±1°F from -4 to 122°F; ±2°F at other ranges ±0.6°C from -20 to 50°C; ±1.2°C at other ranges
Sample data
up to 16,000 points
Cable length
59" (150 cm) with DB9 connector
Dimensions
2.16" w x 3.70" h x 0.85" d (55 x 94 x 21.5 mm)
Display size
0.47" x 1" (12 x 25.5 mm)
IT8926 SPECIFICATIONS
Temperature range
-40°F to 185°F (-40° to 85°C)
Temperature accuracy
±1°F from -4 to 122°F; ±2°F at other ranges ±0.6°C from -20 to 50°C; ±1.2°C at other ranges
Humidity Range
0 to 100% RH
Humidity Accuracy
±3% RH
Sample data
up to 16,000 points
Cable length
59" (150 cm) with DB9 connector
Dimensions
2.16" w x 3.70" h x 0.85" d (55 x 94 x 21.5 mm)
Display size
0.47" x 1" (12 x 25.5 mm)
IT8808 SPECIFICATIONS
Temperature range
-40°F to 185°F (-40° to 85°C)
Temperature accuracy
±1°F from -4 to 122°F; ±2°F at other ranges ±0.6°C from -20 to 50°C; ±1.2°C at other ranges
Sample data
up to 8,000 points
Cable length
59" (150 cm) with DB9 connector
Dimensions
2.60" w x 4.13" h x 0.86" w (66 x 105 x 22 mm)
CAT NO.
MODEL
DEscRIPTION
AVAIL
PRICE
IT8928
DL8828
Digital Temperature Datalogger
Yes
213,840
IT8808
DL8808
Temperature Datalogger
Yes
213,840
IT8926
DL8829
Digital Temperature/Humidity Datalogger
Yes
270,000
IT8927
INT8818
Datalogger Base, Windows® Software & Base
Yes
151,092
IT980
EP980
Desktop Printer for Dataloggers
Yes
170,640
