TH200 Shore 고무경도계

제조사 : Time
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

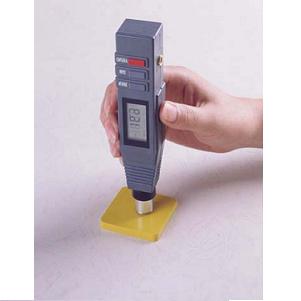

TH200 Shore Rubber Hardness Tester

Main function:

TH200 cancels and locks in the peak value, makes the average value calculation and under-voltage alarming.

The RS232 communication cable connector to be carried out with the machine can carry out the data communication with computer.

Automatically switch off

Measuring range: 0-100HA

Measurement deviation: within 20-90HA

HA < +1 grade

Technical Specifications

Test scales available Shore A
Standards  DIN53505,ASTM D2240
Result display  Hardness result, Average value, Max value (peak value lock), Battery indication
Result display resolution 0.1 unit
Data output RS-232
Statistics Total test, Highest hardness, Average
Features Automatic shut off, battery low alarming
Operating temperature 0 - 40°C
Power requirements 3 x 1.25V batteries(V357)
battery life 300Hours
Dimensions 145g

Standard delivery

  • Main unit
  • Batteries
  • Case
  • Manual
  • Time Certificate

Optional accessories

  • Data cable to pc
  • Operating stand with constant load THS-200S
