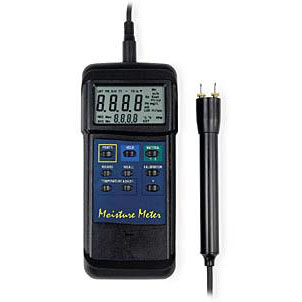

EH407777 Heavy Duty Moisture Meter

제조사 : DAVIS
제품번호:EH407777
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Optional Windows™ Data Acquisition Software and serial cable enable user to display.
Applications
  • Wood products, Furniture making/repair, wood floor manufacturing & installation, wood drying, building inspection, pest control, lumber inspection, fire damage, and water damage

Features
  • Super large 1.4" (36mm) LCD display
  • Displays wood moisture content from 9-30% with a 0.1% resolution
  • Memory contains 9 material groups including calibrations for approximately 150 species of wood
  • Built-in self calibration with manual temperature compensation adjustment
  • Record/Recall MIN/MAX readings
  • Data Hold plus Auto shut off
  • Built-in RS-232 serial interface for connection to a PC
  • Complete with 2 pin moisture probe, 40" cable, 10 spare pins, protective holster, and 9V battery

Interface Options
  • Optional Windows™ Data Acquisition Software and serial cable enable user to display and capture readings on a PC, and set time intervals and alarms
  • Optional battery operated Datalogger module stores over 8000 readings for later transfer to a PC
  • Optional MeterBOSS software and PortMUX Multiplexer allow user to monitor up to 16 meters using one PC COM port

SPECIFICATION



 Accuracy(%rdg+digits)
Range
9% to 30%
±(4%+5d @9-24%)
Resolution
0.1%
Sampling time
0.8 second
Manual Temperature
Compensation 32 to 122°F (0 to 50°C)
Dimensions/Weight
(Meter) 7 x 2.9 x 1.3" (180 x 72 x 33mm) / 12.3oz (350g)
(Probe) 0.9" (23mm)D 6.5" (165mm)L

CAT NO. MODEL DEscRIPTION AVAIL PRICE
EH407777   407777   HEAVY DUTY MOISTURE METER   Yes   645,840
EH407779   407779   OPTIONAL SPARE CONTACT PINS FOR H.D. MOISTURE METER FOR Heavy Duty Moisture Meter   Yes   21,600



EH156221   156221   OPTIONAL 220 VAC ADAPTOR FOR Heavy Duty Moisture Meter   Yes   36,720
EH11948059   407000   OPTIONAL DATA ACQUISITION SOFTWARE AND CABLE FOR Heavy Duty Moisture Meter   Yes   149,040



EH380340   380340   OPTIONAL DATALOGGER MOD W/ PC-DOS SOFTWARE FOR Heavy Duty Moisture Meter   Yes   429,840



EH480957   480957   OPTIONAL METERBOSS MULTIPLEXING SOFTWARE FOR Heavy Duty Moisture Meter   Yes   386,640



EH480900   480900   OPTIONAL PORTMUX RS232C MULTIPLEXER 70VAC FOR Heavy Duty Moisture Meter   Yes   494,640



EH11948061   156119   OPTIONAL 117 VAC ADAPTOR FOR Heavy Duty Moisture Meter   Yes   36,720
EH140001   140001   OPTIONAL HARD VINYL CARRYING CASE FOR Heavy Duty Moisture Meter   Yes   54,000
