This versatile bench-top spectrophotometer allows reflectance, transmittance |
 |

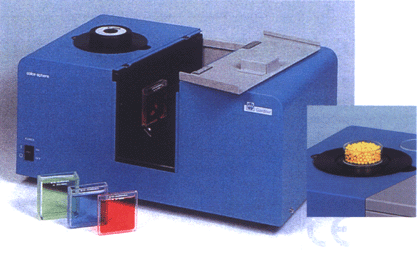

COLOR SPHERE | This versatile bench-top spectrophotometer allows reflectance, transmittance and haze measurement to be made in one easy to use instrument. The top port design enables samples to simply be placed on top of the instrument allowing easy measurements of not only flat samples but also pellets, powders, slurries or resins, when using a glass cup. For transparent materials, the large transmission compartment allows a variety of liquids or plastic films to be measured using an optical glass cell and transmission specimen holder.
Features ¡Ü Reference beam technology ensures high accuracy ¡Ü Pre-flash function for superior repeatability even on dark colours ¡Ü Built-in motorized gloss trap, for SPIN or SPEX modes. ¡Ü Standard interchangeable apertures: 8 and 30 mm ¡Ü Sphere protected with automatic shutter ¡Ü Certified white standard & green control tile included ¡Ü Auto-QC analysis software included.
Performance ¡Ü Geometry: d/8 SPIN and SPEX, pulsed xenon lamp ¡Ü Spectral range: 400-700 nm, 20 nm interval ¡Ü Repeatability: 0.05 ¥ÄE*, 1¥ò - 30 measurements on white tile ¡Ü Inter-instrument agreement: 0.15 ¥ÄE*, 1¥ò - average on 12 BCRA II tiles ¡Ü Operating environment: 10¡É - 42¡É, < 85% rH, non condensing.
Software Auto-QC (included) ¡Ü Detailed QC and powerful analysis software ¡Ü Manual & automatic tolerance setting ¡Ü Built-in Access database and data export to spreadsheet. |

|
STANDARDS |
Same as for Micromatch plus | |
Ordering references
COLOR-SPHERE |
BG6460 |
Color-Sphere 230 V (115 V on request) |
OPTIONAL ACCESSORIES |
BG6474 |
** 3 mm aperture |
BG6475 |
Glass cup kit (cup+calibration glass + aperture adapter) |
BG6480 |
Transmittance zero plate (must be used for transmission) |
BG6479 |
Transmittance holder (max. sample size: 22.5mm) |
BG6180 |
Glass cuvette 50¡¿2.5 mm (1.97¡¿0.1") |
BG6181 |
Glass cuvette 50¡¿4.0 mm (1.97¡¿0.16") |
BG6182 |
Glass cuvette 50¡¿5.0 mm (1.97¡¿0.2") |
BG6183 |
Glass cuvette 50¡¿10 mm (1.97¡¿0.39") |
BG6189 |
Glass cuvette 50¡¿20 mm (1.97¡¿0.79") | | | |
|
|
 | |
 |
